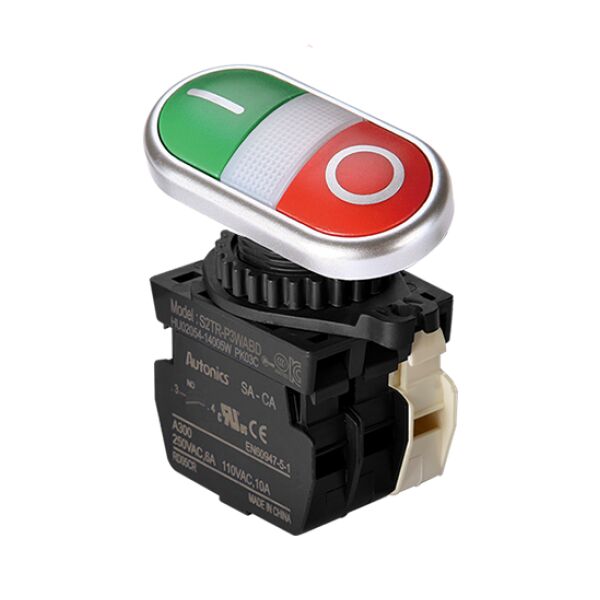

S2TR-P3WABL Autonics Push Button

714.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. S2TR-P3WABL
Contact block Electrical specification Power voltage/current 110VAC~/10A, 250VAC~/6A
LED block Power supply 110-220VAC~ 50/60Hz
Protection structure IP50
Approval IC, CE
Weight Mounting hole_Ø22/25 Approx. 14.5g
Weight Housing Approx. 7g
Weight Contact block Singular type A/B contact Approx. 11g
Weight LED block AC voltage type Approx. 12g
Button type [Illuminated] Extended
Contact block A contact: 1, B contact: 1
Contact block type Singular type
Environment Ambient temperature -15 to 55℃, storage: -25 to 65℃
Environment  Ambient temperature 35 to 85% RH, storage: 35 to 85% RH

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics PR12-4DN Proximity Sensor

Description

S2TR-P3WABL Autonics Push Button

The S2TR series Ø22/25 mm double push-button switches are ideal for applications requiring ON/OFF control. The switches offer high electrical conductivity, outstanding performance and long-lasting durability.

  • LED block_Current consumption : Max. 20mA
  • Protection structure : IP50
  • Button type : [Illuminated] Extended
  • Contact block : A contact: 1, B contact: 1
  • Contact block type : Singular type
