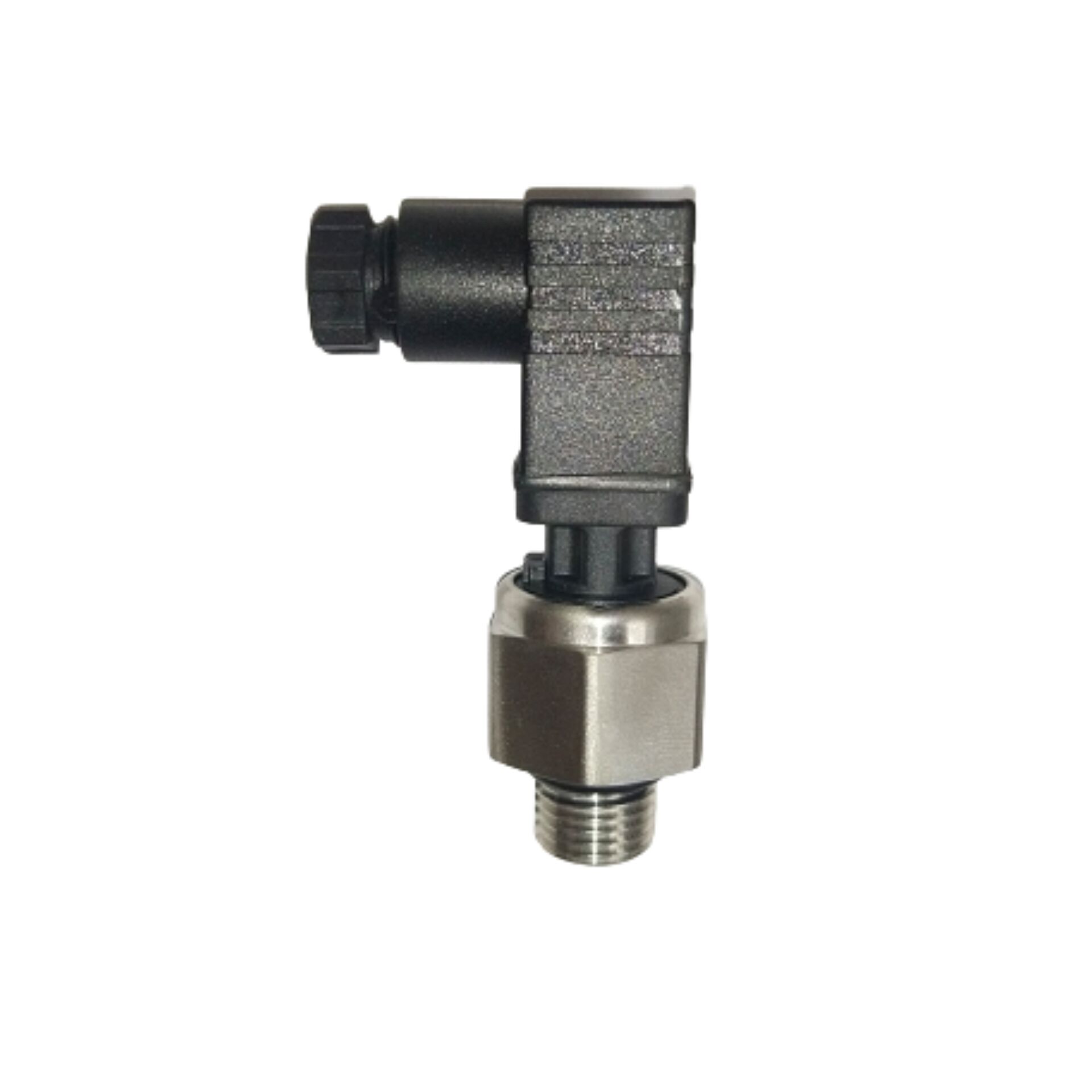

PX3CG1SS001BACHX Honeywell Pressure Transducers

3,499.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. PX3CG1SS001BACHX
Type Heavy Duty Pressure Transducer
DIN (Male, EN 175301-803C)
Pressure Port Type G1/4 A-G (ISO 1179-3)
Internal O-ring Material Silicone
Temperature Range -40°C to 125°C
Pressure Range 1 bar
Pressure Reference Absolute
Output Transfer Function Ratiometric: 5.0 V, 10% to 90% Vs
Operating temperature Range -40°C to 125°C
Storage temperature range -40°C to 125°C
Accuracy ±0.25 %FSS
Response time <2 ms
Dielectric strength <1 mA at 1500 Vac

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell PX3 Pressure Transducers

Description

PX3CG1SS001BACHX Honeywell Pressure Transducers  use piezo resistive sensing technology with ASIC(Application Specific Integrated Circuit) signal conditioning in a brass or stainless steel housing and Metri-Pack 150, DIN, or cable harness electrical connections. The Honeywell PX3CG1SS001BACHX Pressure Transducers, PX3 Series is calibrated and temperature compensated from -40°C to 125°C [-40°Fto 257°F].



POTENTIAL APPLICATIONS
• Industrial: Refrigerant pressure monitoring in HVAC/R systems; dry air system pressure, process controls and automation
• Transportation: Dry air system monitoring; hydraulic, brake, and engine oil fluid pressure monitoring; air brake pressure monitoring
The PX3 Series is not recommended for use with media involving water, saturated air such as steam and vapor, and ammonia.
