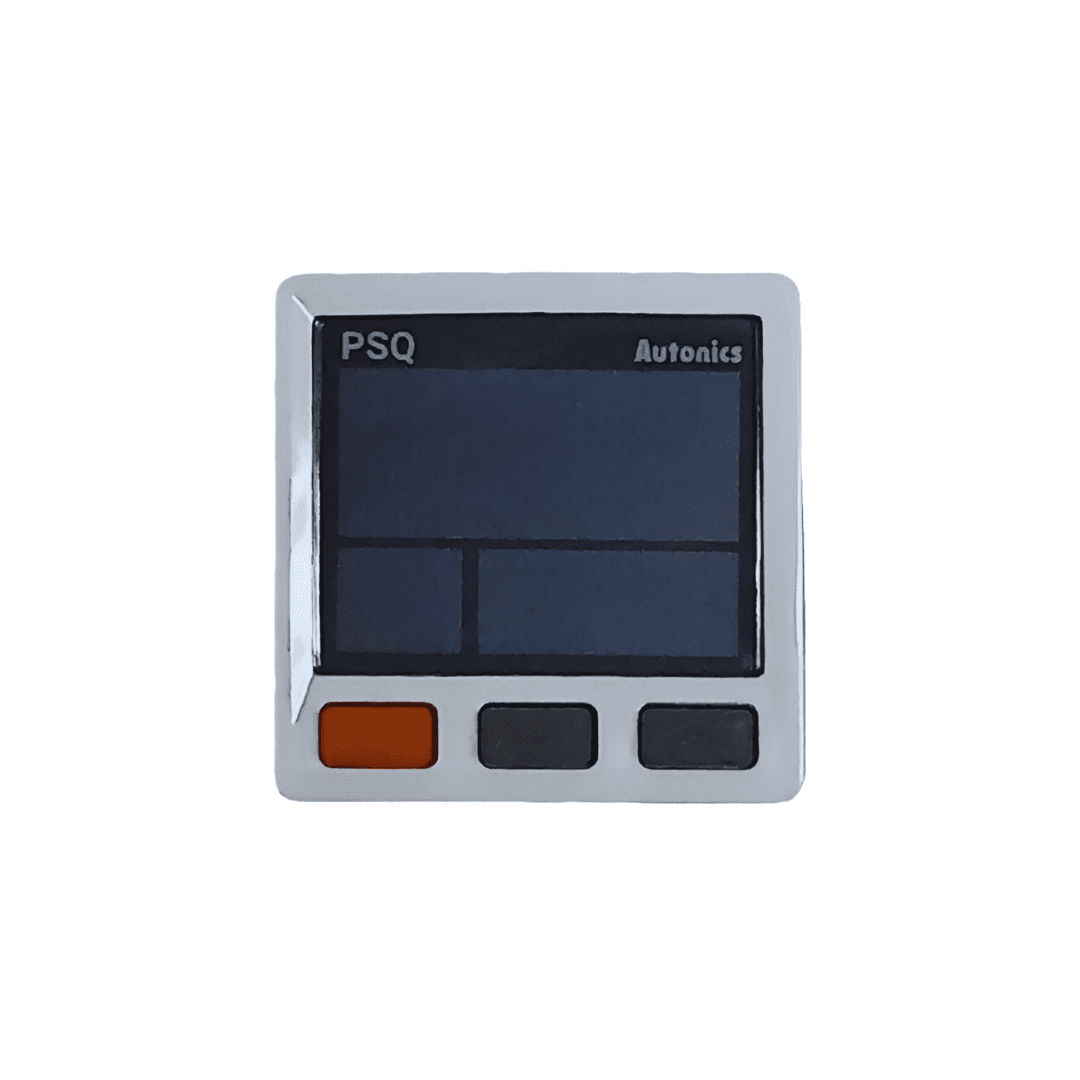

Name: PSQ-C1CU-Rc1/8 Autonics Digital Pressure Sensor
SKU: 65927
Price: 10163.00 INR
Availability: OutOfStock

PSQ-C1CU-Rc1/8 Autonics Digital Pressure Sensor

Available on order

₹10,163.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model Number	PSQ-C1CU-Rc1/8
Applicable fluid	(Pneumatic type) Air, Non-corrosive gas
Pressure port direction	Rear fitting
Pressure port	Rc1/8
Connection type	Connector type(connector type cable: 2m)
Pressure type	Compound pressure
Rated pressure range	-100 to 1,000kPa
Display pressure unit	MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O
Control output	Select one at parameter setting NPN open collector output PNP open collector output
Option input/output	Select one at parameter setting Voltage(1-5VDC ) output Current(DC4-20mA) output AUTO SHIFT, REMOTE ZERO, HOLD input
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 50mA(current output: Max. 70mA)
Protection structure	IP40
Control output_Hysteresis	Min. display interval
Control output_Repeat error	±0.2% F.S. ±Min. display interval
Control output_Response time	Select one: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms
Weight	Approx. 165g(approx. 80g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

PSQ-C1CU-Rc1/8 Autonics Digital Pressure Sensor

Features:-

Pressure measurement of any gas, liquid or oil [Fluid type] (※except substances which may corrode stainless steel 316L)
Simultaneous display of present value (PV) and set value (SV) Selectable SV, pressure unit, or none display for SV display part
Selectable NPN, PNP open collector output by parameter setting
3 colors for PV display part (run mode: red or green / setting mode: orange)
12-segment LCD display for easier value reading
Measurement range: -100.0 to 100.0kPa, -100 to 1,000kPa(pneumatic type: compound pressure, fluid type: sealed gauge pressure)
Analog output: voltage (1-5VDC), current (DC4-20mA)
Parameter copy function
Option input/output: auto shift, remote zero, hold (only for PSQ- C U – )
Forced output control mode for device testing and maintenance
Min. display unit: 0.1kPa, 1kPa (variable by model)
One-touch connector type for easy wiring and maintenance
Password setting for SV
