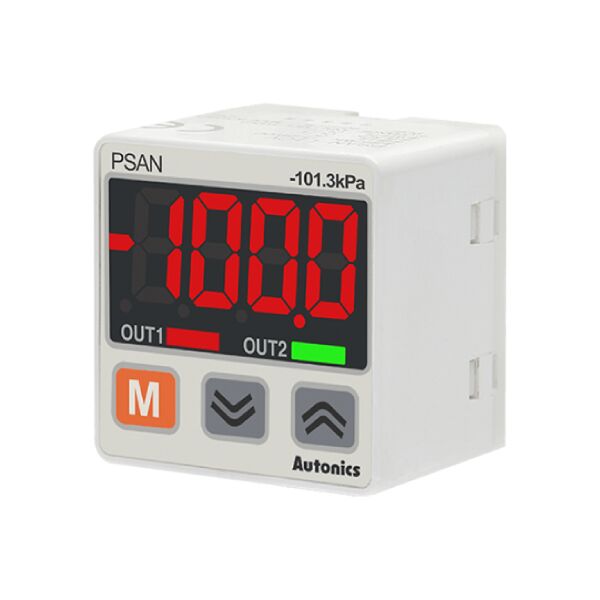

Name: PSAN-V01CPA-RC1/8 Autonics Pressure Transmitter
SKU: 64847
Price: 5359.00 INR
Availability: OutOfStock

PSAN-V01CPA-RC1/8 Autonics Pressure Transmitter

Available on order

₹5,359.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model Number	PSAN-V01CPA-RC1/8
Applicable fluid	(Pneumatic type) Air, Non-corrosive gas
Pressure port direction	Rear fitting
Pressure port	Rc1/8
Connection type	Connector type(connector type cable: 2m)
Pressure type	Negative pressure
Rated pressure range	0.0 to -101.3kPa
Display pressure unit	kPa, kgf/cm², bar, psi, mmHg, inHg, mmH?O
Control output PNP open collector	PNP open collector
Option input/output	Current output(DC4-20mA)
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Voltage output type: Max. 50mA Current output type: Max. 75mA
Protection structure	IP40
Approval	CE
Control output Hysteresis	Min. display interval
Control output Repeat error	±0.2% F.S. ±Min. display interval
Control output Response time	Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
Environment Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment Ambient humidity	30 to 80% RH, storage: 30 to 80% RH
Material	Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
Weight	Approx. 165g(approx. 80g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Features:

deal for a wide range of applications of gas, liquid, and oil.
(Inappropriate to corrosion environment for SUS316L)
1/2,000 high resolution for indication
Hold/Auto shift input function: Enables to output stably
regardless of changing normal primary pressure and One unit
performs two units functions (Only for models with Hold/Auto
shift input type)
2 independent outputs and N.O./N.C. output selectable
Forced-output mode embodied for easy operation test and
monitoring
One-touch connector type for easy maintenance
Analog output
(resolution: automatically changes as 1/1,000 or 1/2,000 by
display unit, voltage: 1-5VDC, current: DC4-20mA)
Zero-point adjustment function, peak monitoring function, and
chattering prevention function
