Name: PRL12-4DN Autonics Proximity Sensor
SKU: 62446
Price: 1323.00 INR
Availability: OutOfStock

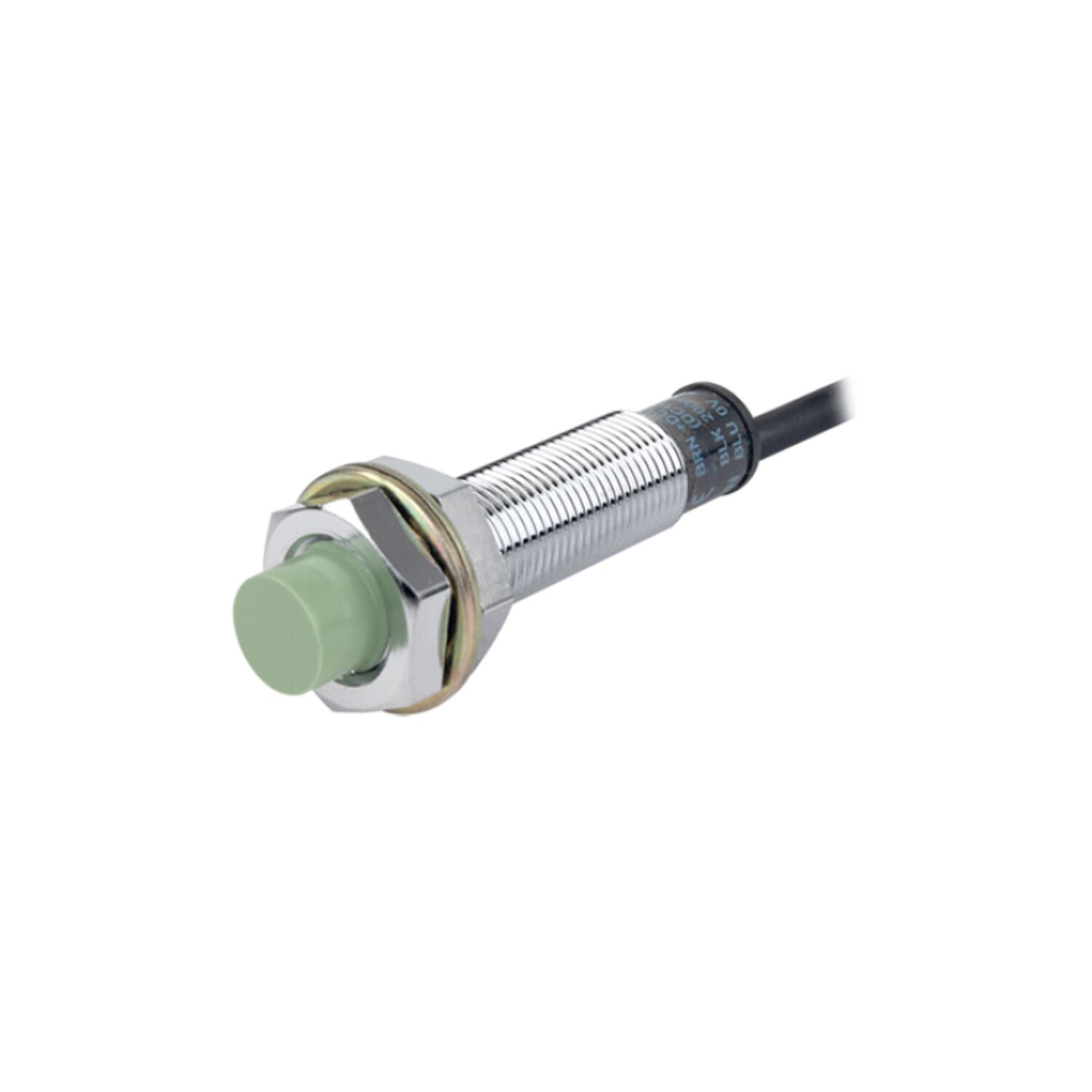

PRL12-4DN Autonics Proximity Sensor

Available on order

₹1,323.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model	PRL12-4DN
Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M12
Sensing distance	4mm
Installation	Non-shield(non-flush)
Standard sensing target	12×12×1mm(iron)
Response frequency	500Hz
Current specification	Current consumption: Max. 10mA
Control output	NPN Normally Open
Material	Brass(nickel plated)
Cable Standard/material	Standard cable
Protection structure	IP67
Approval	CE
Body length	Long body
Environment Ambient temperature	-25 to 70 Deg C
Environment Ambient humidity	35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 1.5V
Weight	Approx. 88g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

PRL12-4DN Autonics Proximity Sensor

Features:

Shorten the time of maintenance with the body
Improved the Noise resistance by adopting dedicated IC (DC 3 – Wire type)
Reverse power polarity (DC), surge (AC/DC), Overcurrent Protection (DC type – Except for PS12-Series)
Long Life cycle and high reliability
Red LED status indication
IP67 rated waterproof structure (IEC standard)
Replacer for micro switches and Limit switches
