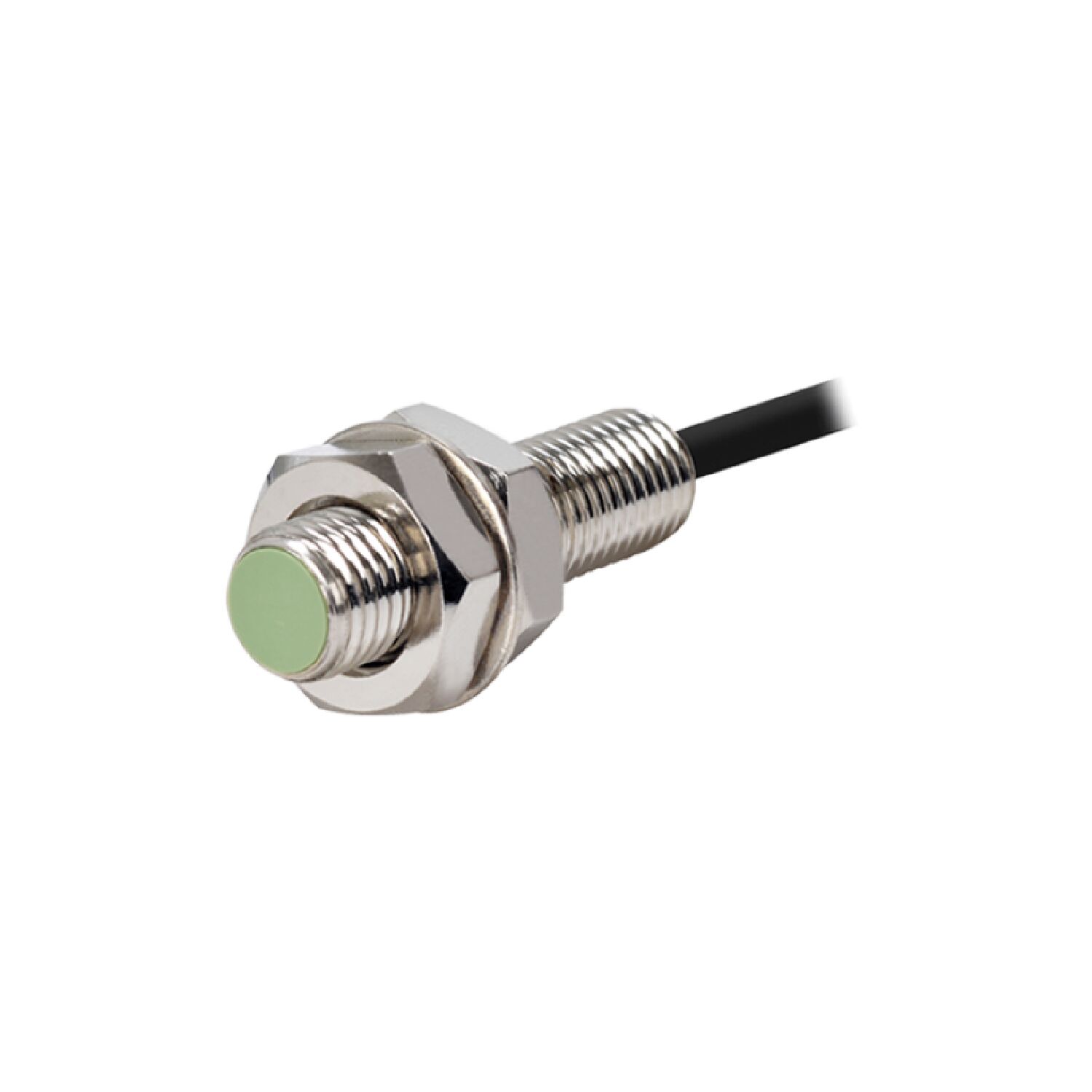

PRT08-1.5DO Autonics Proximity Sensor

Available on order

1,448.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model PRT08-1.5DO
Wire type and power DC 2-wire type 12-24VDC
Sensing side diameter M08
Sensing distance 1.5mm
Installation Shield(flush)
Standard sensing target 8×8×1mm(iron)
Response frequency 1.5kHz
Current specification Leakage current: Max. 0.6mA
Control output Normally Open
Material Brass(nickel plated)
Cable Standard/material Standard cable
Protection structure IP67
Approval CE
Body length Standard type
Environment Ambient temperature -25 to 70 Deg C
Environment Ambient humidity 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 3.5V
Weight Approx. 64g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

PRT08-1.5DO Autonics Proximity Sensor

Features

  1. Improved the noise resistance with dedicated IC (DC 3-wire)
  2. Reverse power polarity, surge, overcurrent protection
  3. Long life cycle and reliable simple operation
  4. Red LED status indication
  5. IP67 rated waterproof structure (IEC standard)
  6. Replacer for micro switches and limit switches
