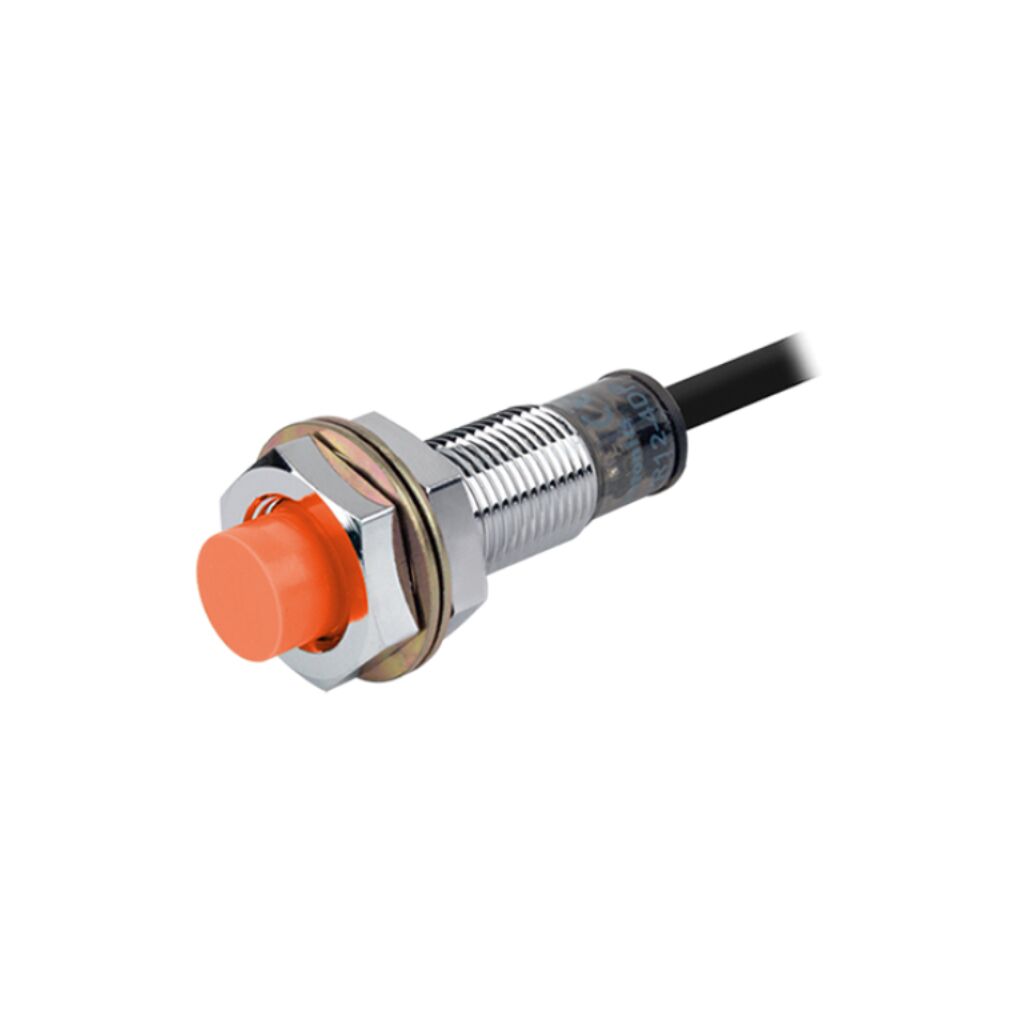

PRT12-4DC Autonics Proximity Sensor

Available on order

1,550.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model PRT12-4DC
Sensing distance 4mm ±10%
Hysteresis Max. 10% of sensing distance
Standard Sensing Target 12×12×1mm(iron)
Setting Distance 0∼2.8mm
Power Supply(operation voltage) 24VDC (15-30VDC)
Leakage current Max. 0.6mA
Response Frequency *1 500 Hz
Residual Voltage Max. 7V
Affection by Temp. ±10% Max. for sensing distance at +20°C within temperature range of -25 ∼ +70°C
Control output 2 ∼ 100mA
Insulation resistance Min. 50M Ω (at 500 VDC mega)
Dielectric strength 1500VAC 50/60Hz for 1 minute
Vibration 1mm amplitude at frequency of 10∼55Hz in each of X, Y, Z, directions for 2 hours
Shock 500m/s² of (50G) in X, Y, Z direction 3 times
Indicator Operation Indicator (Red Led)
Ambient Temperature -25 ∼ +70°C (at non-freezing status)
Storage temperature -30 ∼ +80°C (at non-freezing status)
Ambient humidity 35 ∼ 90%RH
protection Circuit Surge, reverse power polarity, Overcurrent protection circuit
protection IP67 (IEC Standard)
cable spec. ø4×2P, 2m
Unit weight Approx.63g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

PRT12-4DC  Autonics Proximity Sensor

Rectangular Type Proximity sensor.

Features:

  • Shorten the time of maintenance with the body
  • Improved the Noise resistance by adopting dedicated IC (DC 3 – Wire type)
  • Reverse power polarity (DC), surge (AC/DC), Overcurrent Protection (DC type – Except for PS12-Series)
  • Long Life cycle and high reliability
  • Red LED status indication
  • IP67 rated waterproof structure (IEC standard)
  • Replacer for micro switches and Limit switches
