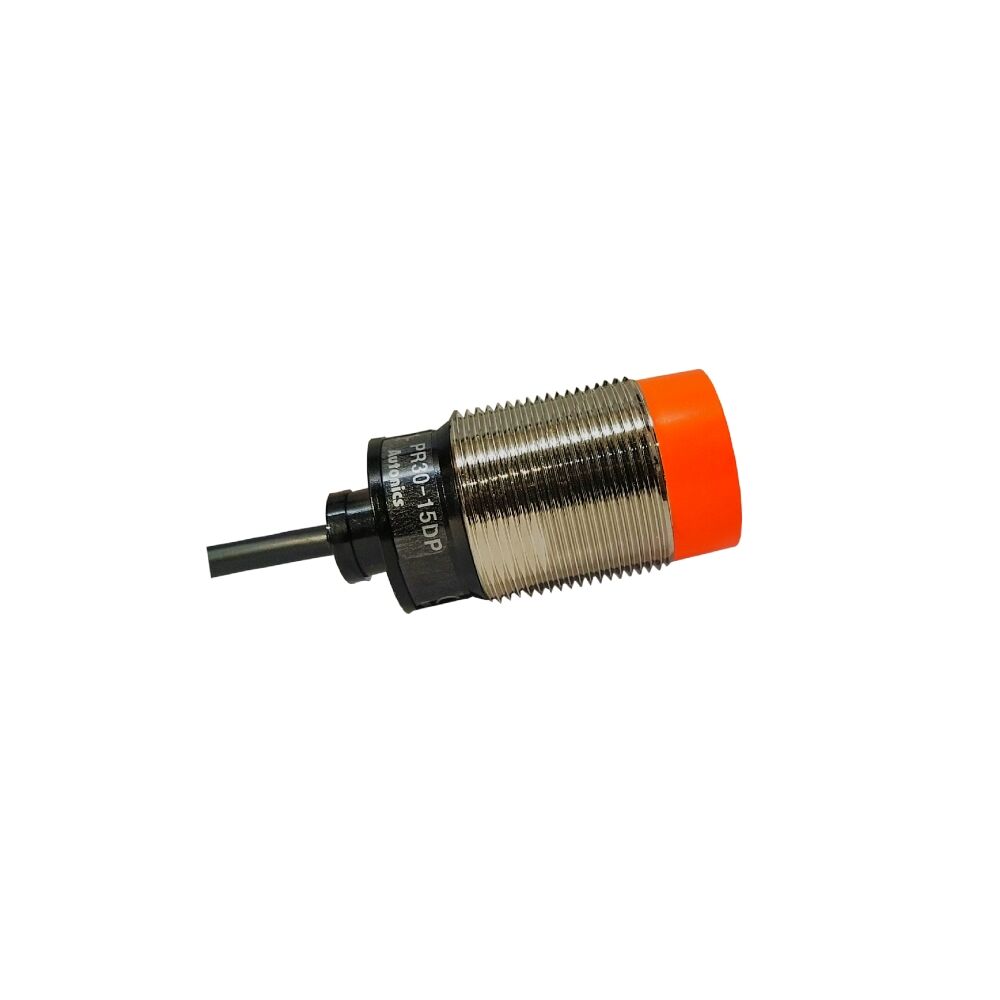

Name: PR30-15DP Autonics Proximity Sensor
SKU: 59050
Price: 1365.00 INR
Availability: InStock

PR30-15DP Autonics Proximity Sensor

₹1,365.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model No.	PR30-15DP
Sensing Distance	15 mm
Current Consumption	10 mA (Max)
Connector Type	DC-3 Wire Type
Usage/Application	Industrial
Hysteresis	10%
Standard Sensing Target	45 x 45 x 1 mm (Iron)
Power Supply	12-24 VDC
Leakage Current	10mA (Max)
Response Frequency	200Hz
Residual Voltage	1.5 V (Max)
Control Output	200 mA
Insulation Resistance	50 M Ω (Min)
Dielectric Strength	1500 VAC 50/60 Hz for 1 min
Vibration	1mm amplitude
Shock	500 m/s²
Indicator	Operation Indicator (Red Led)
Ambient Temperature	-25 to +70ºC
Storage Temperature	-30 to +95ºC
Ambient Humidity	35 to 95% Rh
Protection Circuit	Reverse power polarity, surge, overcurrent protection
Setting Distance	0~10.5 mm
Protection	IP67 (IEC standard)
Weight	181g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The PR30-15DP Autonics Proximity Sensor, PR30-15DP from Autonics is a cylindrical inductive Proximity Sensor with pigtail cable. This PR series sensors are long life cycle, high reliability and simple operation.

Features:
