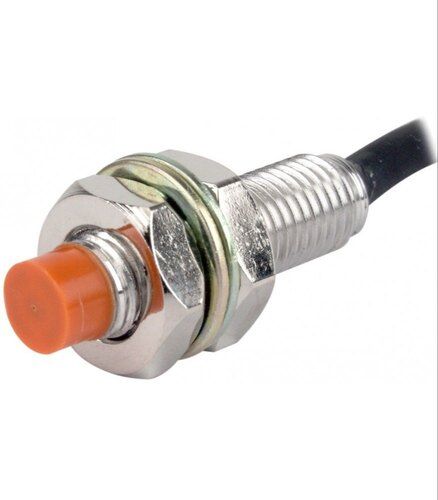

PR08-2DP Autonics Proximity Sensor

1,993.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. PR08-2DP
2 mm
Current Consumption 10 mA (Max)
DC-3 Wire Type
Industrial
Hysteresis 10%
Standard Sensing Target 8 x 8 x 1 mm (Iron)
Power Supply 12-24 VDC
Leakage Current 10mA (Max)
Response Frequency 1kHz
Residual Voltage 1.5 V (Max)
Control Output 200 mA
Insulation Resistance 50 M Ω (Min)
Dielectric Strength 1500 VAC 50/60 Hz for 1 min
Vibration 1mm amplitude
Shock 500 m/s²
Indicator Operation Indicator (Red Led)
Ambient Temperature -25 to +70ºC
Storage Temperature -30 to +80ºC
Ambient Humidity 35 to 95% Rh
Protection Circuit Reverse power polarity, surge, overcurrent protection
Setting Distance 0~1.4mm
Protection IP67 (IEC standard)
Weight 36g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics PR08-2DP Proximity Sensor

Description

PR08-2DP  Autonics Proximity Sensor, Cylindrical Type Proximity Sensor

Features:

  • Improves the noise resistance with dedicated IC (DC 3-wire)
  • Long life cycle and reliable simple operation
  • Red LED status indication
  • IP67 rated waterproof structure (IEC standard)
  • Replacer for micro switches and limit switches
