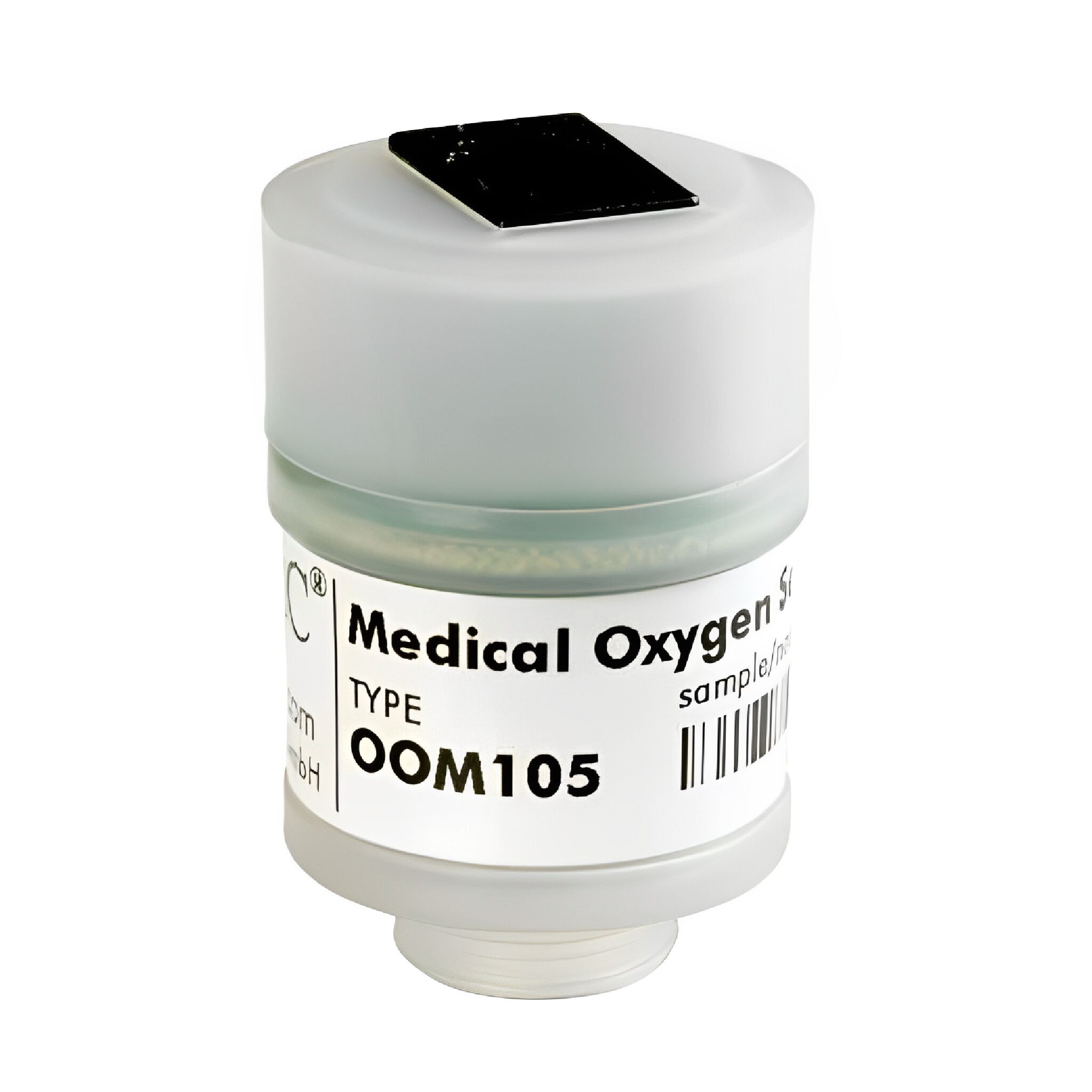

Name: OOM105(E01-00-0053) Honeywell Envitec Oxygen Sensor
SKU: 62029
Price: 7500.00 INR
Availability: OutOfStock

OOM105(E01-00-0053) Honeywell Envitec Oxygen Sensor

Available on order

₹7,500.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details :

Product	Description
Brand	Honeywell Envitec
Model Name/Number	OOM105
Measurement range	0 % … 100 % oxygen (at atmospheric pressure)
Nominal sensor lifetime	≥ 500 000 % volume oxygen hours
Output in ambient air	Compatible with Teledyne® T-7 sensor
Output difference	1.25 mV (between the two channels)
Part number	01-00-0097
Accuracy	meets ISO 80601-2-55 requirements
Repeatability	< 1 % volume O2 at constant temperature and pressure
Linearity error	< 3 % relative
Response time	< 12 s to 90 % of final value
Influence of humidity	-0.03 % rel. per % RH at 25 °C
Pressure range	0.6 bar … 2 bar (ppO2 0 … 1250 mbar O2
Operating temperature	0 °C … +50 °C
Temperature compensation	built-in NTC compensation
Operating humidity	0 % … 99 % RH non-condensing
Storage temperature	-20 °C … +50 °C
Warm-up time	< 30 minutes, after replacement of sensor
Weight	approximately 28 grams

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

OOM105 (E01-00-0053) Honeywell Envitec Oxygen Sensor

Use the advantages:

Compliant with European MDD (CE certification)
Meets ISO 80601-2-55
Designed and manufactured according to EN ISO 13485
Accurate and reliable fast response
Resistant to N2O
Excellent signal stability
High product quality
Short delivery times
Technical support
Made in Germany
FDA cleared

From standard sensors to customized sensors
Experienced EnviteC engineers analyze customer requirements. This input is used for different standard and OEM applications, and ongoing support is provided right up to the final integraton in the solution. EnviteC designs customized sensors characterized by a maximum possible degree of precision, for example with different signal levels or temperature compensation elements.

Intendend use of Honeywell Envitec OOM105 Oxygen Sensor
The EnviteC Medical Oxygen Sensors are intended as oxygensensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following
applications:

Sensing device for oxygen in

control device of oxygen concentrators
medical ventilators
anaesthesia equipment
incubators.

The use is limited to system is being monitor. The sensors are not was suited for breath by breath analysis of breath gases. Please refer to the Instructions for Use! If the sensor is intend to replace the original oxygen-sensing component of an oxygen analyzer, consult the EnviteC XRL Cross Reference List for selecting the appropriate sensor.
