Name: OOM102(E01-00-0019) Honeywell Envitec Oxygen Sensor
SKU: 62364
Price: 7500.00 INR
Availability: OutOfStock

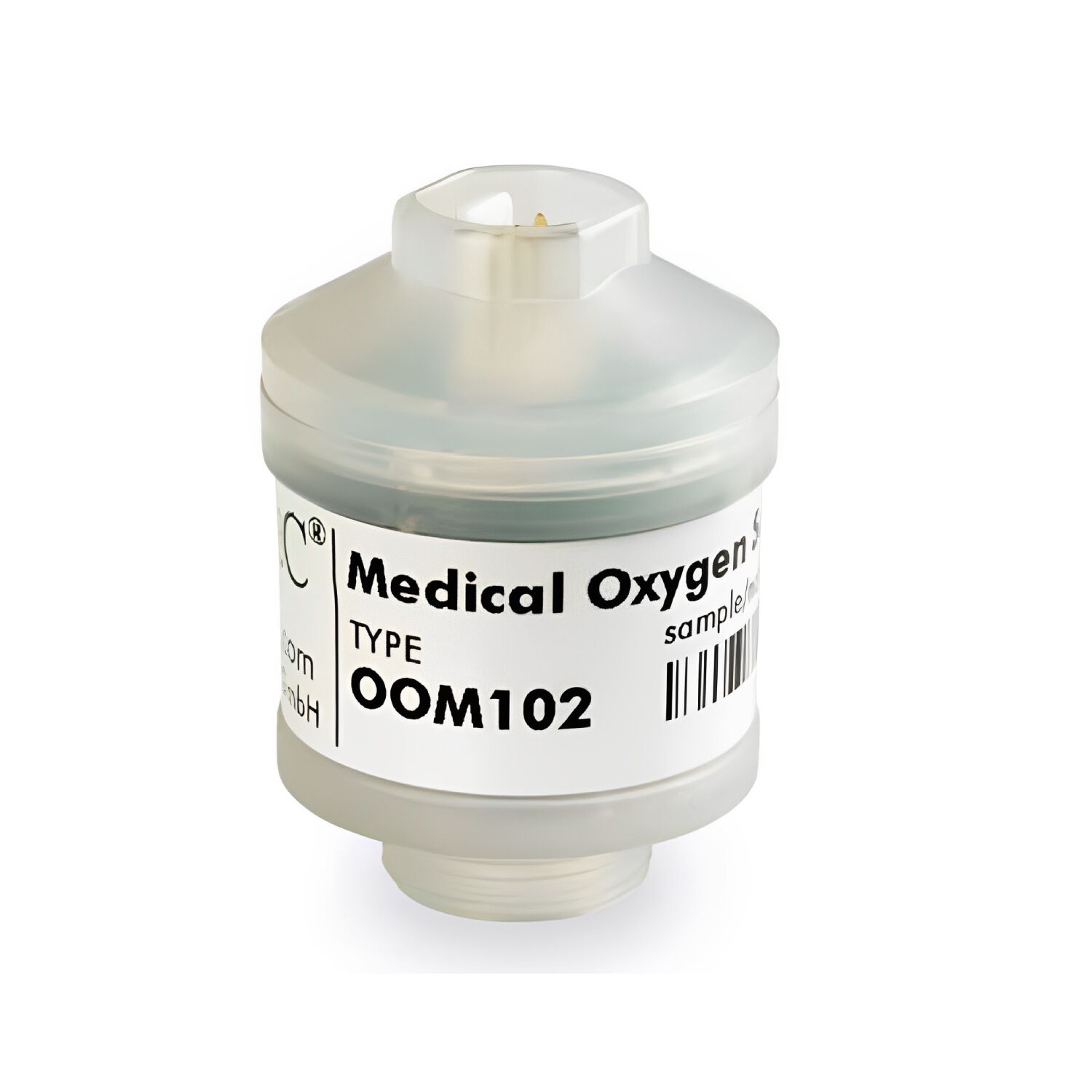

OOM102(E01-00-0019) Honeywell Envitec Oxygen Sensor

Available on order

₹7,500.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell Envitec
Model No.	OOM102
Part number	01-00-0019
Nominal sensor lifetime	≥ 1 000 000 % volume oxygen hours
Output in ambient air	9 mV … 14 mV
Accuracy	meets ISO 80601-2-55 requirements
Measurement range	0 % … 100 % oxygen (at atmospheric pressure)
Repeatability	< 1 % volume O2 at constant temperature and pressure
Linearity error	< 3 % relative
Response time	< 12 s to 90 % of final value
Zero offset voltage	< 200 µV in 100 % nitrogen, applied for 5 min
Cross interference	meets ISO 80601-2-55 requirements
Influence of humidity	-0.03 % rel. per % RH at 25 °C
Pressure range	0.6 bar … 2 bar (ppO2 0 … 1250 mbar O2
Influence of pressure	proportional to change in oxygen partial pressure
Operating temperature	0 °C … +50 °C
Operating humidity	0 % … 99 % RH non-condensing
Storage temperature	-20 °C … +50 °C
Recommended storage	+5 °C … +15 °C
Weight	approximately 28 grams

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

OOM102(E01-00-0019) Honeywell Envitec Medical Oxygen Sensors is intended as oxygen sensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following applications:
Sensing device for oxygen in
