Name: Envitec OEM SpiroQuant MAX Flow Module (E1001487)
SKU: 62045
Price: 8950.00 INR
Availability: OutOfStock

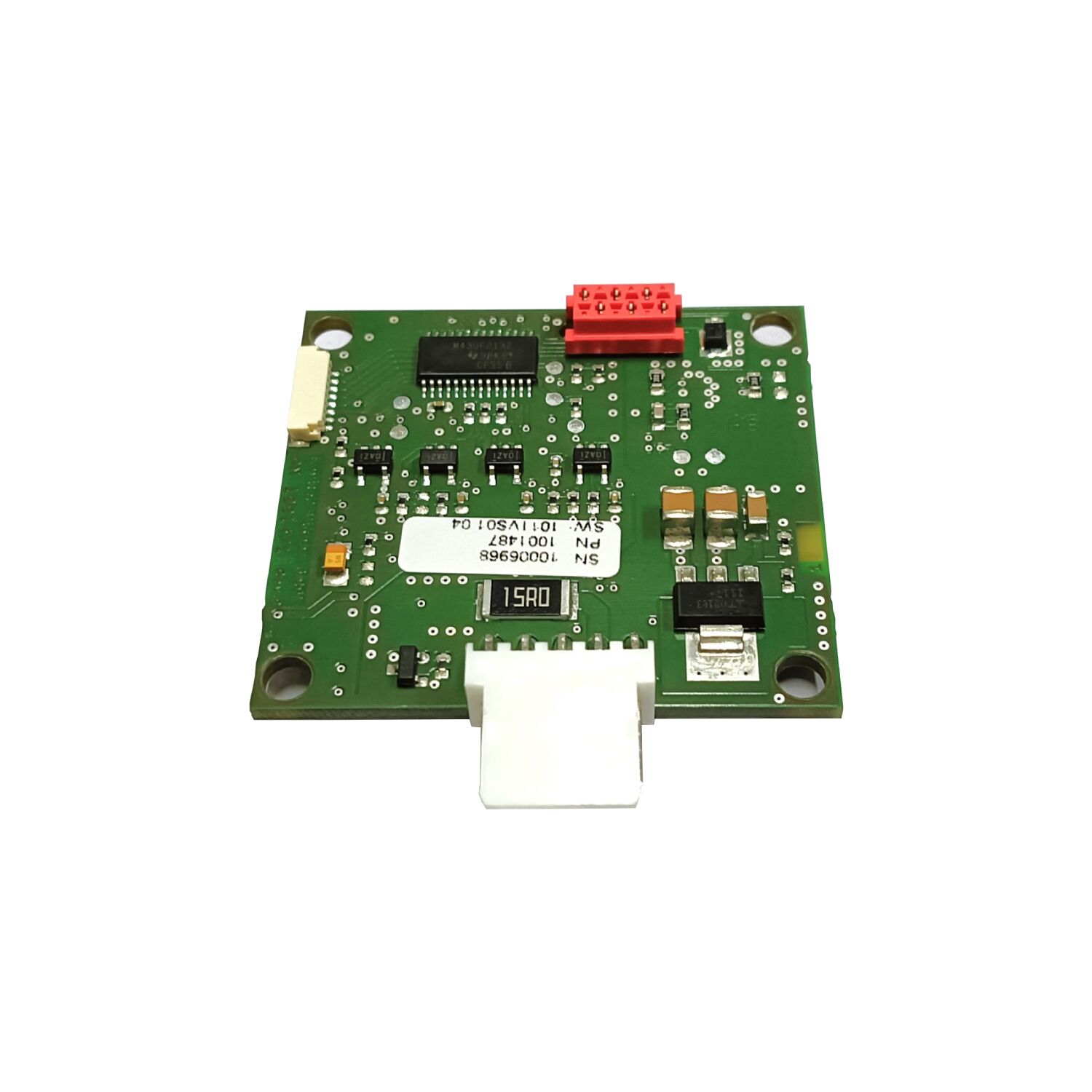

Envitec OEM SpiroQuant MAX Flow Module (E1001487)

Available on order

₹8,950.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell Envitec
Model No.	E1001487
Measuring principle	Constant temperature mode
Cross reference	SpiroQuant MAX is designed to work with EnviteC’s hot-wire flow sensor SpiroQuant A+.
Measurement range	0 … 160 slpm (standard liter per minute)
Accuracy	± 7% from measured value between 0 … 10 l/min with flow sensor SpiroQuant A+; ± 5% from measured value between 10 … 160 l/min with flow sensor SpiroQuant A+
Supply voltage	5 V DC ± 4 % (for 5 V version min. 4.8 V is required)
Current consumption	70 … 250 mA (depending on gas flow)
Interface	RS-232 with level converter (EIA/TIA-232 compatible)
Data rate	38400 Baud, Data bit 8, Stop bit 1, Parity none, Handshake none
External wire cleaning	TTL compatible H level (approx. 250 ms pulse length)
Digital I/O (optional)	TTL compatible signal, user specific level
AD conversion	Resolution: 10 bit
Conversion time	Approx. 5 ms
Maximal date rate	200 samples per second
Dimensions	38 x 41 mm (L x W)
Height	Max. 12 mm
Weight	Approx. 10 g
Attachment holes	4 x Ø 3.2 mm
Connection	Board supply & communication: MicroMatch 6-pole; Flow sensor: Molex 5-pole
Part number	1001487: OEM-Module SpiroQuant MAX; 1001475: Cable flow sensor; 1000470: Box flow sensors SpiroQuant A+; 1001488: Development Kit SpiroQuant MAX (incl. module, sensor cable, flow sensor, USB interface, USB cable and evaluation software)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SpiroQuant MAX Flow Module

EnviteC has been developing and manufacturing highly specialized products for medical applications. EnviteC´s research
and development activities are consistently aligned to customer and market needs – identification and optimization of sustainable product solutions are the main concerns of the company. The company trusts in the quality of advanced production methods and processes. The result are flow measurement solutions for medical applications, which share the same extraordinary
quality, excellent signal stability and reliable response for accurate readings. The OEM flow module SpiroQuant MAX is designed for flow measurement using a hot-wire flow sensor SpiroQuant A+

Experienced EnviteC engineers analyze customer requirements. This input is used for different standard and OEM applications, and ongoing support is provided right up to the final integration in the solution. EnviteC designs customized sensors characterized by a maximum possible degree of precision.
