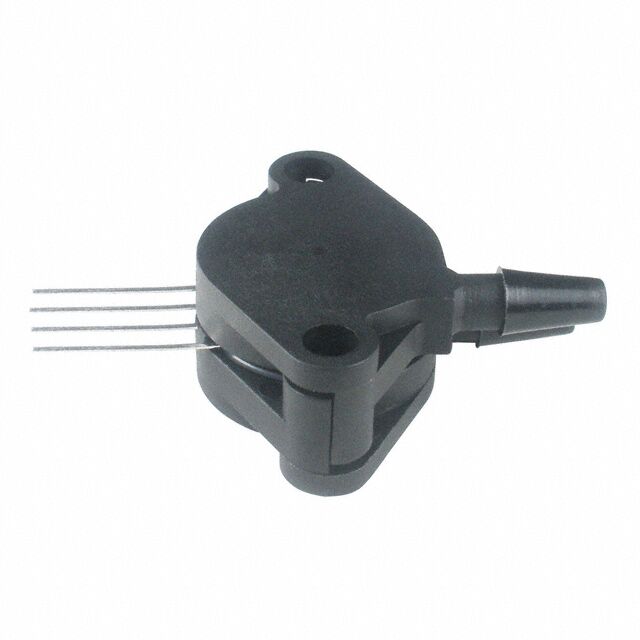

NSCSHHN100PDUNV Honeywell Limit Switch

Product Details:

Product	Description
Brand	Honeywell
Model No.	NSCSHHN100PDUNV
Supply voltage (Vsupply):1, 2 pressure ranges >60 mbar \| 6 kPa \| 1 psi pressure ranges <40 mbar \| 4 kPa \| 20 H2O	1.5Vdc 2.7Vdc
Supply current (at 5.0 Vdc supply) TSC Series NSC Series	0.6mA 1.5mA
Operating temperature range	-40 [-40]°C [°F]
TSC Series compensated temperature range	0 [32]°C [°F]
Startup time	5ms
TSC Series output resistance	2.5kOhm
Humidity	0% to 95% RH, non-condensing
Vibration	MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 kHz)
Shock	MIL-STD-202G, Method 213B, Condition C (100 g, 6 ms duration)
Solder reflow	J-STD-020-D MSL1 (unlimited shelf life when stored at less than 30 °C and 85 %RH)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

NSCSHHN100PDUNV Honeywell Limit Switch

The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Differential
versions allow measurement of pressure between two pressure ports. Gage versions are referenced to atmospheric pressure
and provide an output proportional to pressure variations from atmosphere. The TSC Series and NSC Series sensors are intended for use with non-corrosive, non-ionic gases, such as air. Port 1 can also be used for non-corrosive, non-ionic liquids on sensors rated above 60 mbar | 6 kPa | 1 psi. The TSC and NSC Series offer numerous package styles and mounting options, making it easier for device manufacturers to integrate the product into their applications. These sensors offer infinite resolution on the pressure signal. Frequency response is also typically limited only by the end user’s system. All products are designed and manufactured according to ISO 9001.
