Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | DRGFLA Series |
| Nominal static pressure | 6 bar, 600kPa |
| Leakage rate | < 1% of kVS |
| Ports | Internal threads / flange in accordance with DIN EN 1092-2 depending on type |
| Angle of rotation | 90° |
| Internal threads | 8 windings long |
| Packing | Double o-ring sealing |
| Material body | Cast iron |
| Material inner parts | Chrome-plated cast iron |
| Medium | Heating water according to VDI 2035 (oxygen concentration less than 0.2 g/m3, pH 8…9.5), glycol-water mixtures (max. 50% glycol) |
| Water temperatures in the valve | 2 to 130 °C, non-condensing |
| Weight | depend on type (see sections “Dimensions with DRxxGMLA |
| Flow characteristic | Equal percentage |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

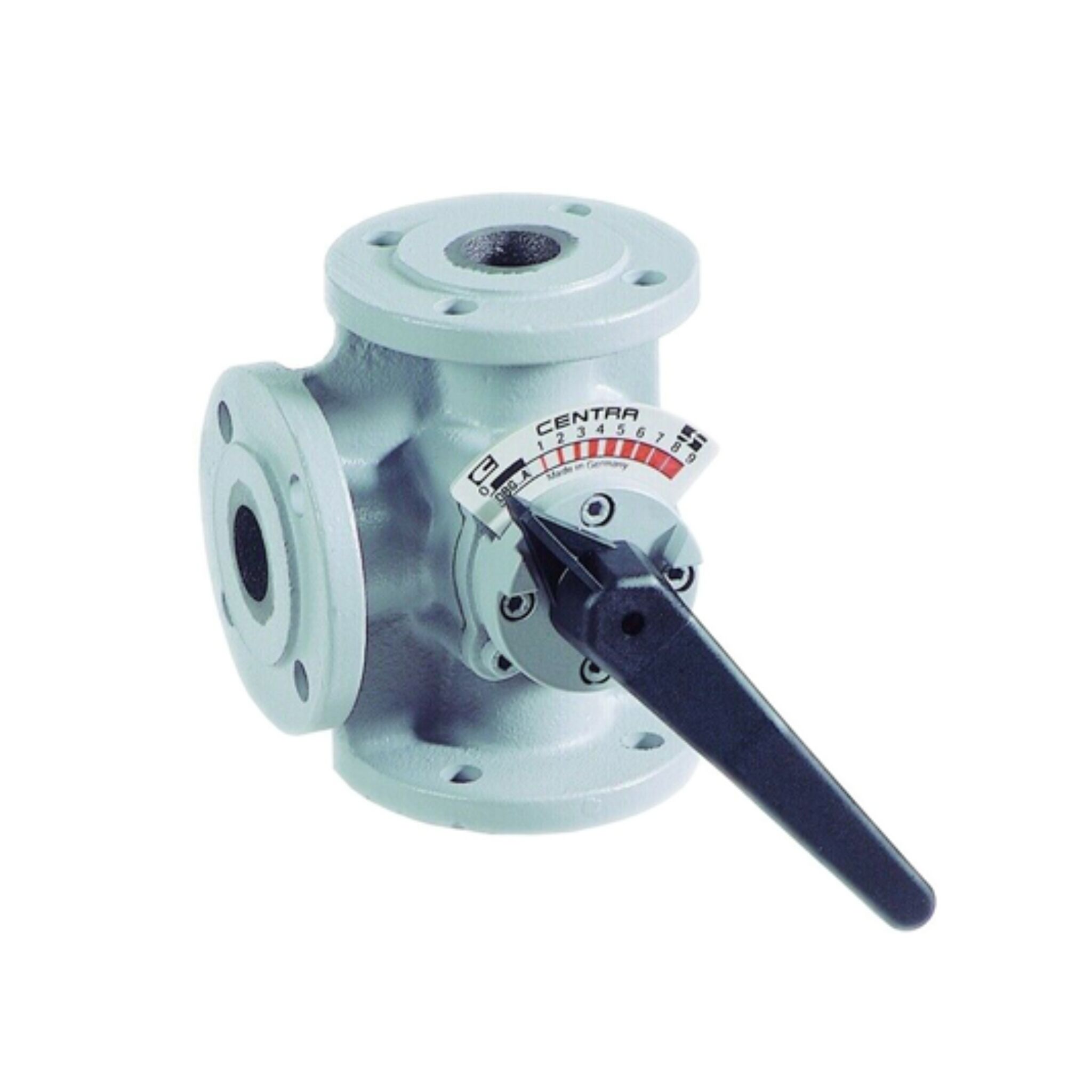

Honeywell Rotary Valve
Features :-
• Chrome-plated plug for long life.
• Optimized characteristic for supply water temperature control
• Protected against corrosion and blocking
• Reliable mounting for electrical actuators
• Clear position indicator
• Wide range of flow rates with suitable actuators
