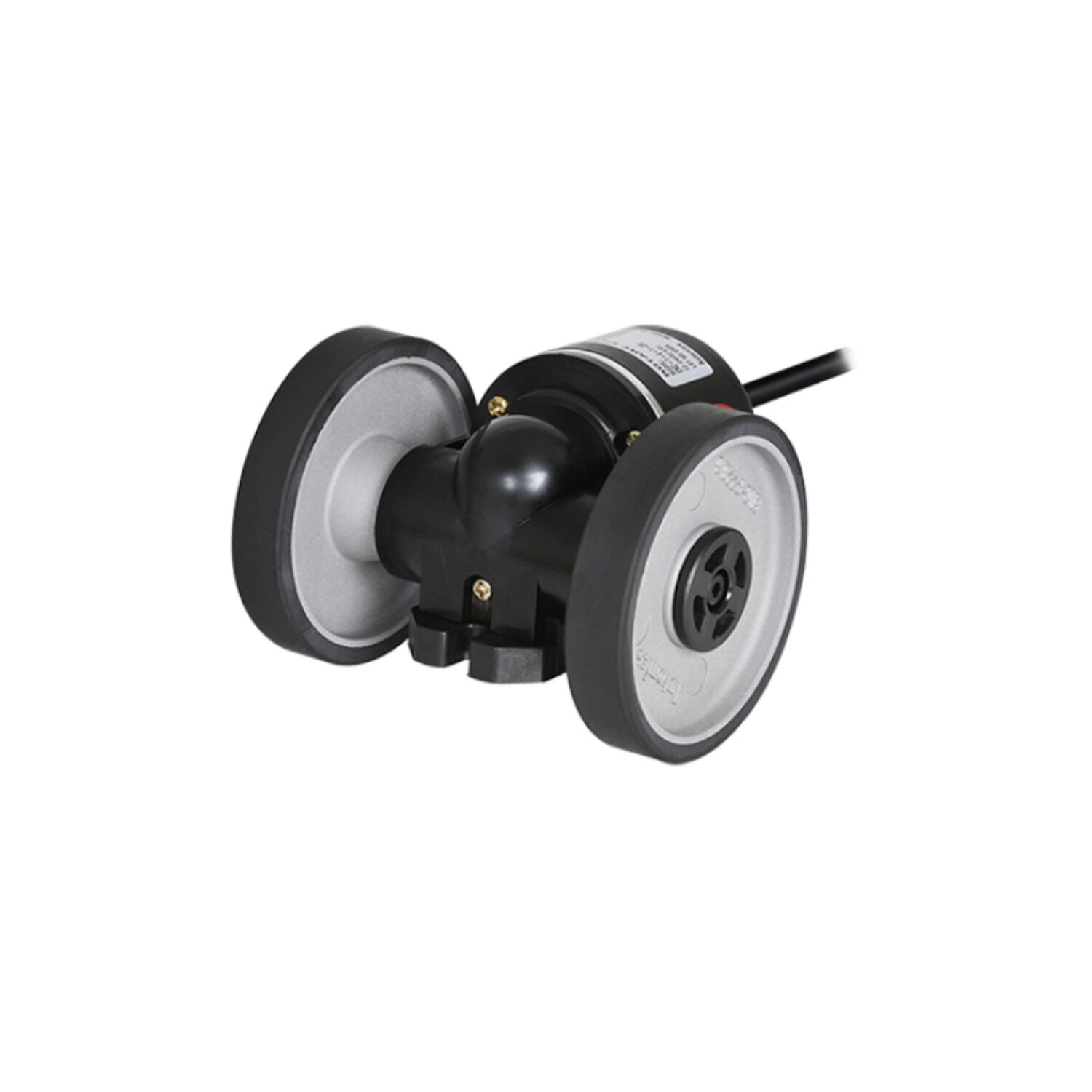

ENC-1-2-T-24 Autonics Rotary Encoder

Available on order

11,077.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. ENC-1-2-T-24
Max. response frequency 180kHz
Max. allowable revolution 5000rpm
Output phase A, B
Wheel diameter 250mm
Gear ratio 4:1
Number of pulses 100
Min. measurement unit 1m
Control output Totem pole
Power supply 12-24VDC
Connection type Axial cable type
Protection structure IP50
Approval CE
Environment Ambient temperature -10 to 70 Deg C
Environment Ambient humidity 35 to 85% RH
Weight Approx. 494g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics E50S8-1000-3-T-1 Rotary Encoder

Description

 ENC-1-2-T-24 Autonics Rotary Encoder

Features

  1. Suitable for measuring the length or speed of target moving successively by wheel type
  2. The output waveform according to measuring distance is proportional to the unit of International Measurement type
  3. Power supply : 5VDC, 12-24VDC

Applications

  • Various packing machine, sheet manufacturing, textile machinery, and general industrial machinery etc.
