₹2,230.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | CR30-15DN |
| Wire type and power | DC 3-wire type 12-24VDC |
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Standard sensing target | 50×50×1mm(iron) |
| Response frequency | 50Hz |
| Current specification | Current consumption: Max.15mA |
| Control output | NPN Normally Open |
| Material | Brass(nickel plated) |
| Protection structure | IP65 |
| Environment Ambient temperature | -25 to 70℃, storage: -30 to 80? |
| Environment Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 20% of sensing distance |
| Weight | Approx. 243g(approx. 206g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

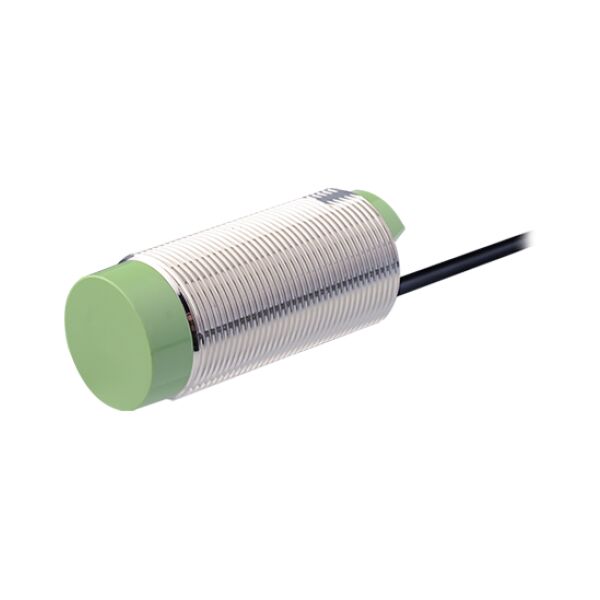

CR30-15DN Autonics Capacitive Sensor
Features:
