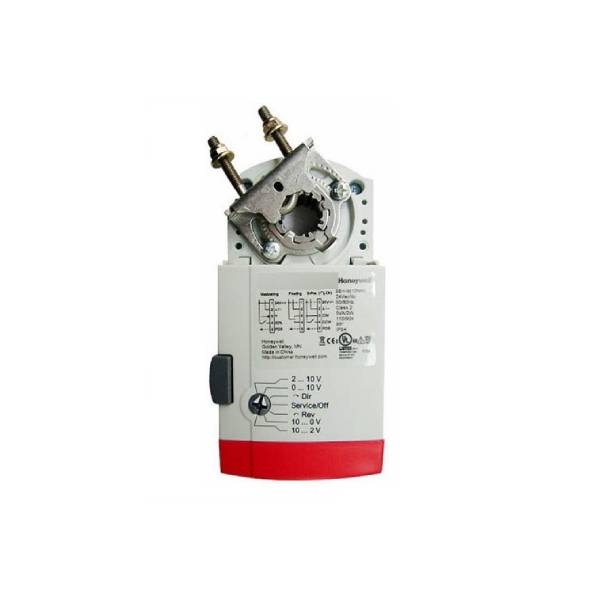

CN4634A1001 Honeywell Damper Actuator

Available on order

19,208.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. CN4634A1001
Type Damper Actuator
Supply voltage 230 Vac ±15%, 50/60 Hz
Nominal voltage 230 Vac, 50/60 Hz
Power consumption 8 VA / 3 W
Ambient limits Ambient operating limits -20…+60 °C (-5…+140 °F)
Ambient storage limits -40…+80 °C (-40…+175 °F)
Relative humidity 5…95%, non-condensing
Safety Protection standard IP54 as per EN 60529
Protection class II as per EN 60730-1
Overvoltage category III
Lifetime Full strokes 60000
Repositions 1.5 million
Mounting Round damper shaft 10…27 mm (3/8…1-1/16″)
Square damper shaft 10…18 mm (3/8…11/16″);
45° steps
Shaft length min. 22 mm (7/8″)
Torque rating 20 Nm (177 lb-in)
Runtime 95 sec (60 Hz) / 110 sec (50 Hz
or DC supply)
Rotation stroke 95° ± 3°
Weight (without cables) 1.35 kg (3 lbs.)
Noise rating 40 dBA max. at 1 m

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell CN4610A1001 Damper Actuator

Description

CN4634A1001 Honeywell Damper Actuator  . This non-spring return direct-coupled damper actuator provides floating and two-position control for:

• air dampers,
• VAV units,
• air handlers,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to 10sq ft / 44 lb-in. (5 Nm) and 20 sq ft / 88 lb-in. (10 Nm) (seal- less damper blades; air friction-dependent).

FEATURES
• Declutch for manual adjustment
• Adjustable mechanical end limits
• Removable access cover for direct wiring
• Mountable in any orientation
• Rotation direction and service/OFF switch

10Nm, 230Vac, floating control, non-spring return, no feedback and without aux. Switch
