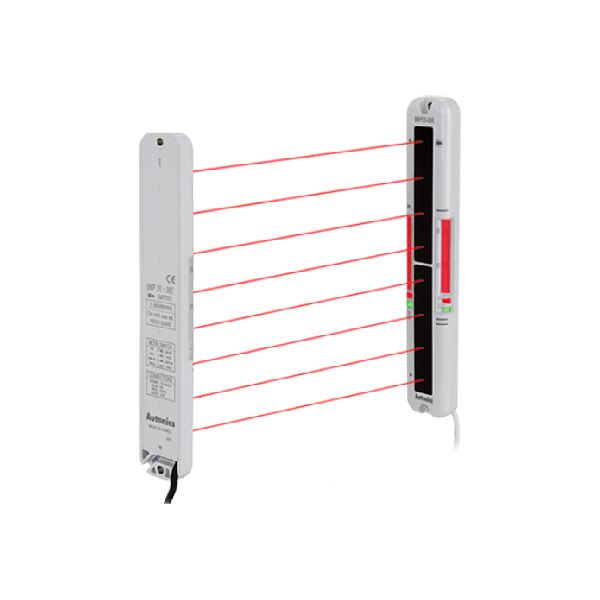

BWP20-20P Autonics Area Sensor

Available on order

20,973.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model no BWP20-20P
Sensing type Through-beam type(direct beam)
Sensing distance 0.1 to 5m
Light source Infrared LED(850nm modulated)
Optical axis pitch 20mm
Number of optical axes 20
Sensing height/Total length 380/430mm
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Control output PNP open collector
Operation mode Light ON/Dark ON(set by switch)
Environment Ambient illumination Sunlight: Max. 10,000lx(receiver illumination)
Environment Ambient temperature -10 to 55℃, storage: -20 to 60℃
Connection type Cable type(Ø3.5, 3m)
Protection structure IP40
Approval CE
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Min. sensing target Opaque material of min. Ø30mm
Response time Max. 6ms(frequency B selection is max. 7ms)
Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate
Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)
(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm)
Weight Approx. 680g(approx. 430g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics TK4S-B4CN Temperature Controller

Description

BWP20-20P  Autonics Area Sensor

Features

  1. 13mm slim body with Fresnel lens.
  2. Adoption of plastic (PC/ABS) injection case
  3. Includes Stop transmission function, Mutual interference prevention
    function, Job indicator Blink function, Light ON/Dark ON switching function
  4. Easy to distinguish of side/front and long distance with high luminance twin
    operation indicators
  5. Fast response time, max. 7ms
  6. 4 types of product (Optical axis pitch
    : 20mm, Number of optical axis: 8, 12, 16, 20)
