Name: BW40-08P Autonics Area Sensor
SKU: 64902
Price: 24668.00 INR
Availability: OutOfStock

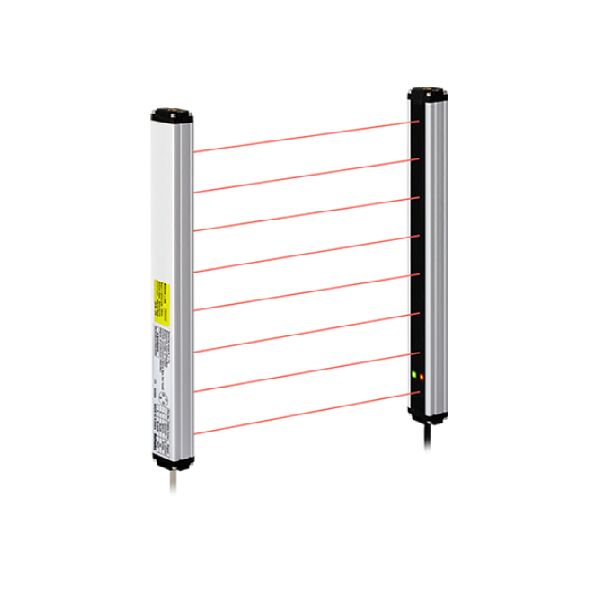

BW40-08P Autonics Area Sensor

Available on order

₹24,668.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model no	BW40-08P
Sensing type	Through-beam type(direct beam)
Sensing distance	0.1 to 7m
Light source	Infrared LED(850nm modulated)
Optical axis pitch	40mm
Number of optical axes	8
Sensing height/Total length	280/340mm
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Control output	PNP open collector
Operation mode	Light ON
Environment Ambient illumination	Ambient light: Max. 10,000lx(receiver illumination)
Environment Ambient temperature	-10 to 55â„ƒ, storage: -20 to 60â„ƒ
Connection type	Cable connector type(Ø5, 300mm, M12)
Protection structure	IP65
Approval	CE
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Min. sensing target	Opaque material of min. Ø50mm
Response time	Max. 10ms
Material	• Case: Aluminum, • Front cover, sensing part: Acrylic
Cable specification	Ø5mm, 4-wire, 300mm, M12 connector
Weight	Approx. 2.1kg(approx. 1.4kg)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BW40-08P Autonics Area Sensor

Features

Long sensing distance up to 7M
22 types of products (Optical axis : 20/4Omm. Sensing height 1 20-94Omm)
Increased sensing stability by minimizing the non sensing area
Easy identification of the side, front and Long distance with
high luminance twin operation indicators
Includes self-diagnosis function, mutual interference provention
function, external diagnosis function.
Polished design & slim size(W28.6× H22.6x Lmm)
IP65 rated waterproof structure (IEC standard)

Functions of Autonics Area Sensor BW40-08P

Stop transmission function(External diagnosis function)

The transmission will be stopped and a yellow LED is flashed if supplying OV to test input on the emitter. It is for checking the malfunction of the sensors during TEST input on the emitter is OV. (Control output of the receiver is OFF as it becomes light cut off when the transmission is stopped.)
