₹3,155.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BUP-30S-P |
| Sensing Type | Through-beam type |
| Sensing Cannel | 1-channel |
| Sensing distance | 30mm |
| Sensing target | Opaquematerial of min. Ø1.5mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -10 to 60℃, storage: -25 to 70℃ |
| Protection structure | IP66 |
| Approval | CE |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate |
| Accessories | Adjuster driver |
| Weight | Approx. 90g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

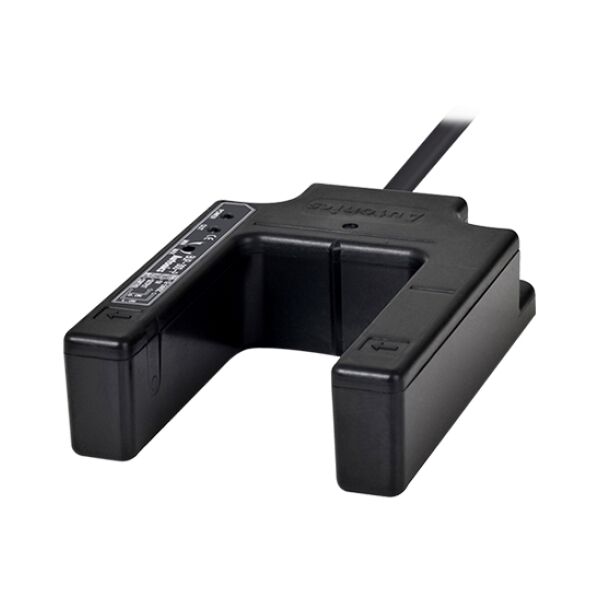

BUP-30S-P Autonics Photoelectric Sensor
Features:
