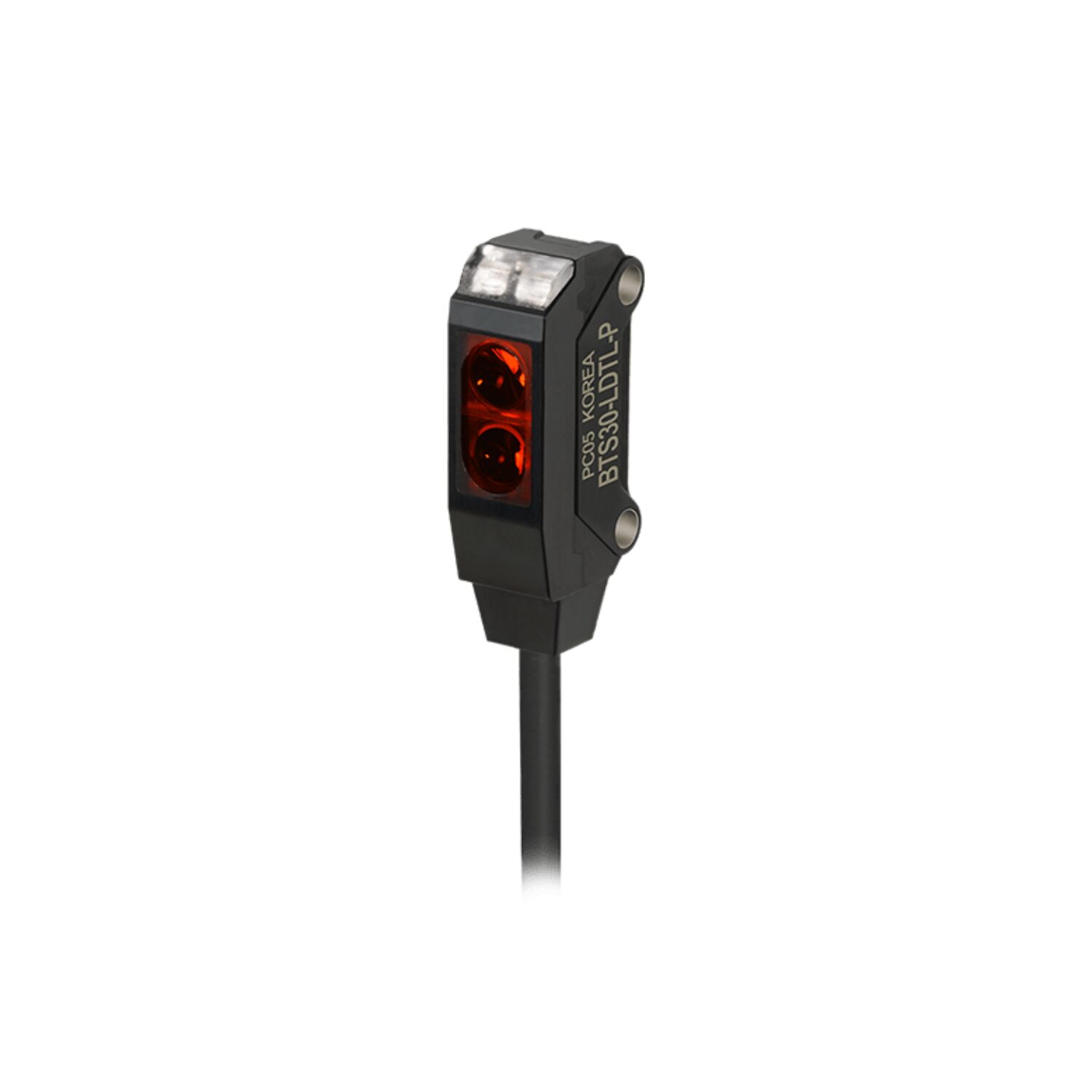

BTS30-LDTL-P Autonics Photoelectric Sensor

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model no BTS30-LDTL-P
Sensing type Convergent reflective type
Sensing distance 5 to 30mm
Light source Infrared LED(940nm)
Response time Max. 1ms
Power supply 12-24VDC
Current consumption Max. 40mA
Operation mode Light ON
Control output PNP open collector
Weight Approx. 45g
Protection structure IP67
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304, Bolt: Carbon steel wire for cold heading(SWCH10A)
Connection type Cable type(Ø2.5, 2m)
Approval CE

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics TK4S-B4CN Temperature Controller

Description

BTS30-LDTL-P Autonics Photoelectric Sensor

  • Sensing type : Convergent reflective type
  • Sensing distance : 5 to 30mm
  • Sensing target : Opaque, Translucent material(min. sensing target: Ø0.15mm)
  • Light source : Red LED(650nm)
  • Response time : Max. 1ms
  • Power supply : 12-24VDC  ±10%(ripple P-P: max. 10%)
  • Operation mode : Light ON
  • Control output : PNP open collector
