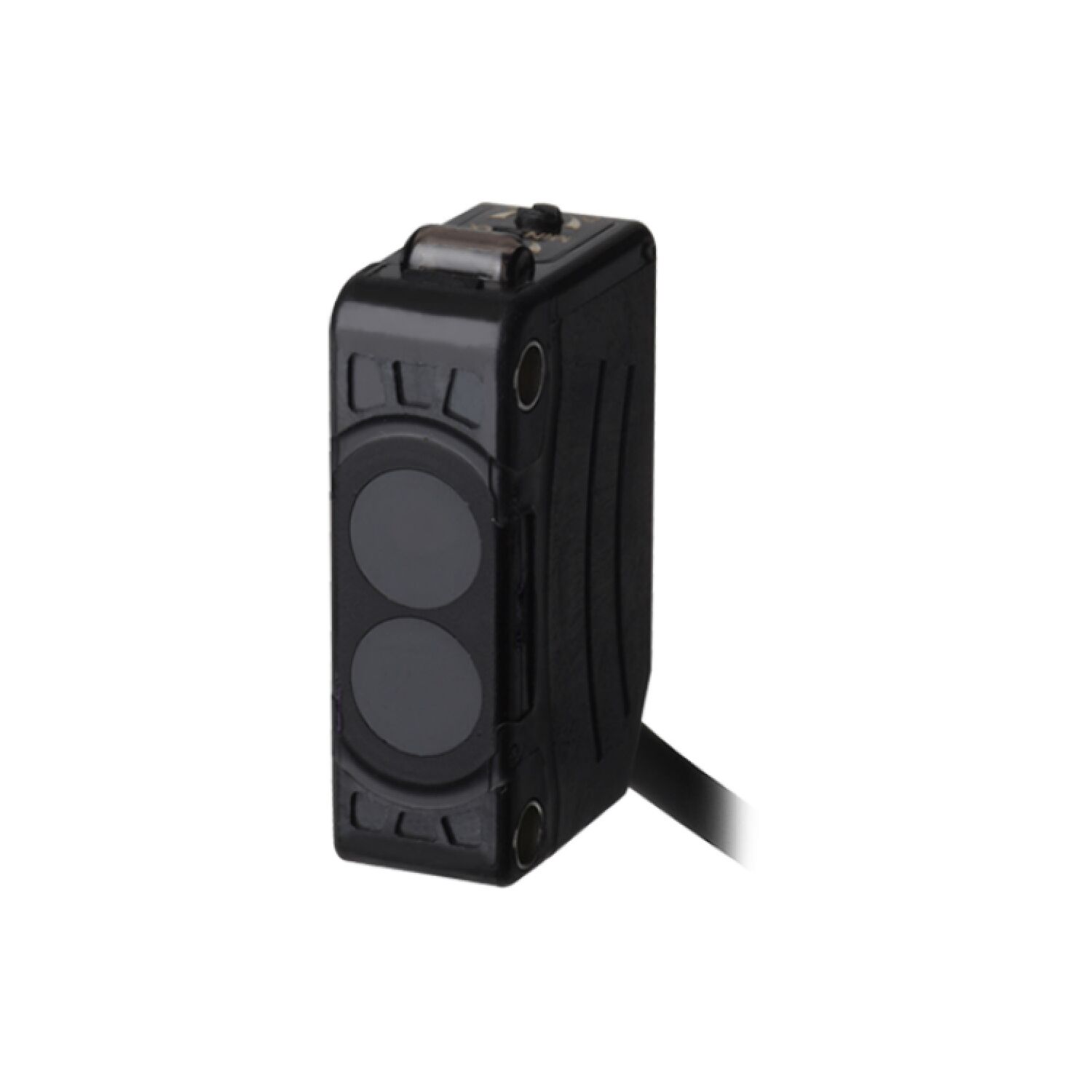

BJ3M-PDT Autonics Photoelectric Sensor

3,495.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model Number BJ3M-PDT
Sensing Type Polarized retroreflective
Sensing Distance 0.1m∼3m
Sensing Target Opaque material over Ø75mm
Response time Max. 1ms
Power Supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Max. 30mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by switch)
Control output PNP open collector
Connection type Cable type(Ø3.5, 2m)
Environment Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment Ambient temperature -25 to 55℃, storage: -40 to 70℃
Protection structure IP65
Approval CE
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 20% of sensing distance
Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,
Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,
Sleeve: Brass, Ni-plate
Accessories Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Weight Approx. 60g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics BEN5M-MFR Retroreflective Photo Sensor

Description

BJ3M-PDT Autonics Photoelectric Sensor

Features

  • Long sensing distance with high quality lens
  • Waterproof structure IP65 by rubber injection (IEC standard)
  • Compact size
  • Detects up to 15m(Transmitted beam type)
  • Long sensing distance Diffuse reflective type 1m,
    Polarized reflective type 3m (MS-3S)
  • Light ON/ Dark ON selectable
  • Built-in sensitivity adjuster (Except for BJG30-DDT)
  • Mutual interference prevention function
    (Retroreflective type, Diffube reflective type)
  • Stable detection for transparent object (LCD, PDP, glass etc)
    by BJG30-DDT.
