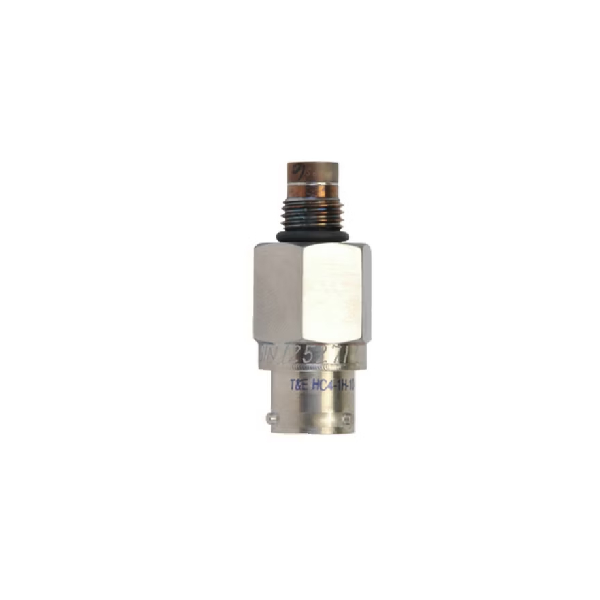

060-0287-07G Honeywell Pressure Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	060-0287-07G
Pressure Range	200 psi
Accuracy	0.5 %FS
Non-linearity and Hysteresis	±0.05 %FS
Temperature (Operating)	-54 °C to 149 °C [-65 °F to 300 °F]
Temperature (Compensated)	16 °C to 71 °C [60 °F to 160 °F]
Temperature Effect (Zero)	0.01 %FS/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

060-0287-07G Honeywell Pressure Transducers

DESCRIPTION
Model A-105 gage pressure transducers are manufactured with
a unitized stainless steel diaphragm. The advantage of this type
of design is that a thin diaphragm and heavy sidewalls are made
from one piece of stainless steel. This unitized diaphragm is rugged, but at the same time can be made thin enough to measure
low pressures. Available pressure ranges span from 100 psig
to 15,000 psig. These models can be used in corrosive fluid
environments. Model A-105 has welded electrical connectors
as an integral part of the transducer body and recommended
for applications involving rough handling or where an all-welded
stainless steel transducer is required.
All units have four (4) active bonded strain gages arranged in a
Wheatstone-bridge configuration.
