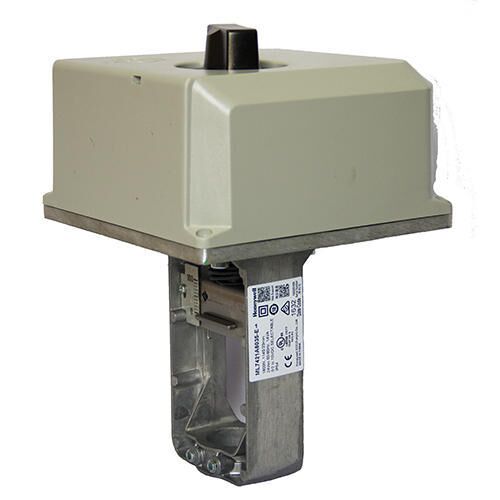

Honeywell ML7421A8035-E Linear Valve Actuator

ML7421A8035-E Honeywell Linear Valve Actuator

₹25,870.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model ML7421A8035-E
Temperature Operating Temperature: -10~+50℃ at 5~95% r.h.

Storage Temperature: -40…+70 °C at 5…95% r.h.
Safety Protection class III as per EN60730-1

Protection standard IP54 as per EN60529

Flame retardant housing V0 as per UL94
Material Cover ABS-FR

Yoke and Base Aluminum die-cast
Wiring Wiring terminal 1.5 mm2

Cable entry M20
Power supply 24 Vac ±15%; 50/60 Hz
Power consumption 14 VA
Feedback signals 2-10Vdc
Stroke 20mm
Runtime (50 Hz ) 1.9min
Output force ≥ 1800N
Weight 2.0Kg

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Available in Stock

Category: Tags:

Description

ML7421A8035-E Linear Valve Actuator  , ML7421A / ML7421B actuators are designed for modulating control, accepting 0(2)…10v or 4…20mA input signal, and providing feedback signal 2…10 Vdc only. ML7421A8035-E Linear Valve Actuator operate Honeywell’s standard valves in heating, ventilation, and air conditioning (HVAC) applications.

      Features:-

  •  Easy and quick installation
  •  No separate linkage and adjustments required
  •  Low power consumption and maintenance-free
  •  Self-adaption function
  •  Force-limiting end stops
  •  Manual operation knob
  •  0(2)~10 Vdc input and 2~10 Vdc position feedback
  •  Direct/ Reverse action adjustable
  •  Selectable stroke position when signal failure
  •  Corrosion-resistant design
