Name: GPTJG3YG100BSCHX Honeywell Pressure Transducer
SKU: 59616
Price: 3250.00 INR
Availability: InStock

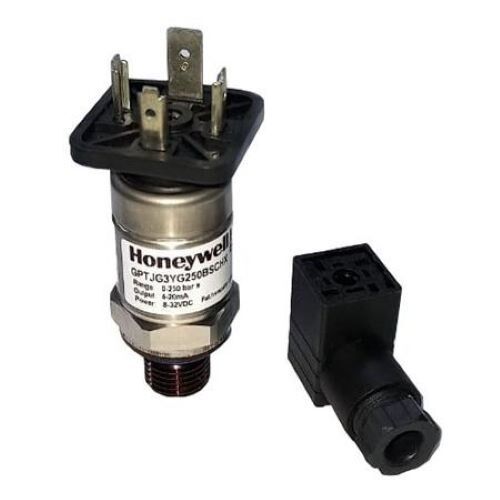

GPTJG3YG100BSCHX Honeywell Pressure Transducer

₹3,250.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	GPTJG3YG100BSCHX
Operating temperature range	-25 ºC to 85 ºC
Storage temperature range	-40 ºC to 125ºC
Compensated temperature range	0 ºC to 70ºC
Accuracy	±0.5%FSS
Total Error Band	±2%FSS over 0 ºC to 70ºC
Response time	<2 ms (10% to 90% step change in pressure)
Turn on time	<7 ms
Electrostatic discharge	±4 kV contact, ±8 kV air per IEC 61000-4-2
Radiated immunity	> 100V/m (200 to 2500 MHz) per ISO 11452-2
Dielectric strength	750 Vac, 1 min.
Life	5 million cycles minimum to 90% full scale pressure (<=25MPa) 1 million cycles minimum to 90% full scale pressure (>25MPa)
Vibration	20 G sweep, 10 Hz to 2000 Hz
Shock	100 G per MIL-STD-202G, Method 213B, Cond. C
Humidity	0 %RH to 95 %RH, non-condensing
Wetted materials	Port: SS316L; Diaphragm: SS316L; Gasket: NBR
External materials housing connector	304 stainless steel PBT 30% GF
Connector	DIN EN 175301-803A
Port Type	G1/4 ISO 1179-2
Snubber	with snubber
Pressure Range	100bar ; 010G = 10MPa
Pressure Reference	Sealed Gage
Output Transfer Function	Current 4 to 20 mA
Electrical Connection	Stand Pin out
Output	4-20mA
Supply Voltage	8-32Vdc
Over and reverse Voltage	±36 Vdc

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

GPTJG3YG100BSCHX Honeywell Pressure Transducer , Honeywell’s GPT Series Pressure Transducers use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a stainless steel housing with electrical connector. The GPT Series are fully calibrated including temperature compensation from 0º C to 70ºC.

Features:-

• Fully media isolated
• Pressure range: 5MPa to 35MPa (absolute and sealed gage)
• Output: 0-10 Vdc, 1 to 6Vdc , 4-20mA or 0.5Vdc to 4.5Vdc
• Fully calibrated and temperature compensated
• Total Error Band: ±2.0 %FSS from 0 °C to 70 °C
• Insulation resistance: >100 Mohm, 500 Vdc
• Dielectric strength: 750 Vac, 1 min.
• EMC: Heavy Industrial Level
• Ingress protection up to IP67
• Response time: <2 ms
• RoHS, REACH, and CE compliant

POTENTIAL APPLICATIONS

• Industrial: Machine Tools, Rubber and Plastic Machinery
• Transportation: Construction Machinery, Agriculture Machinery
