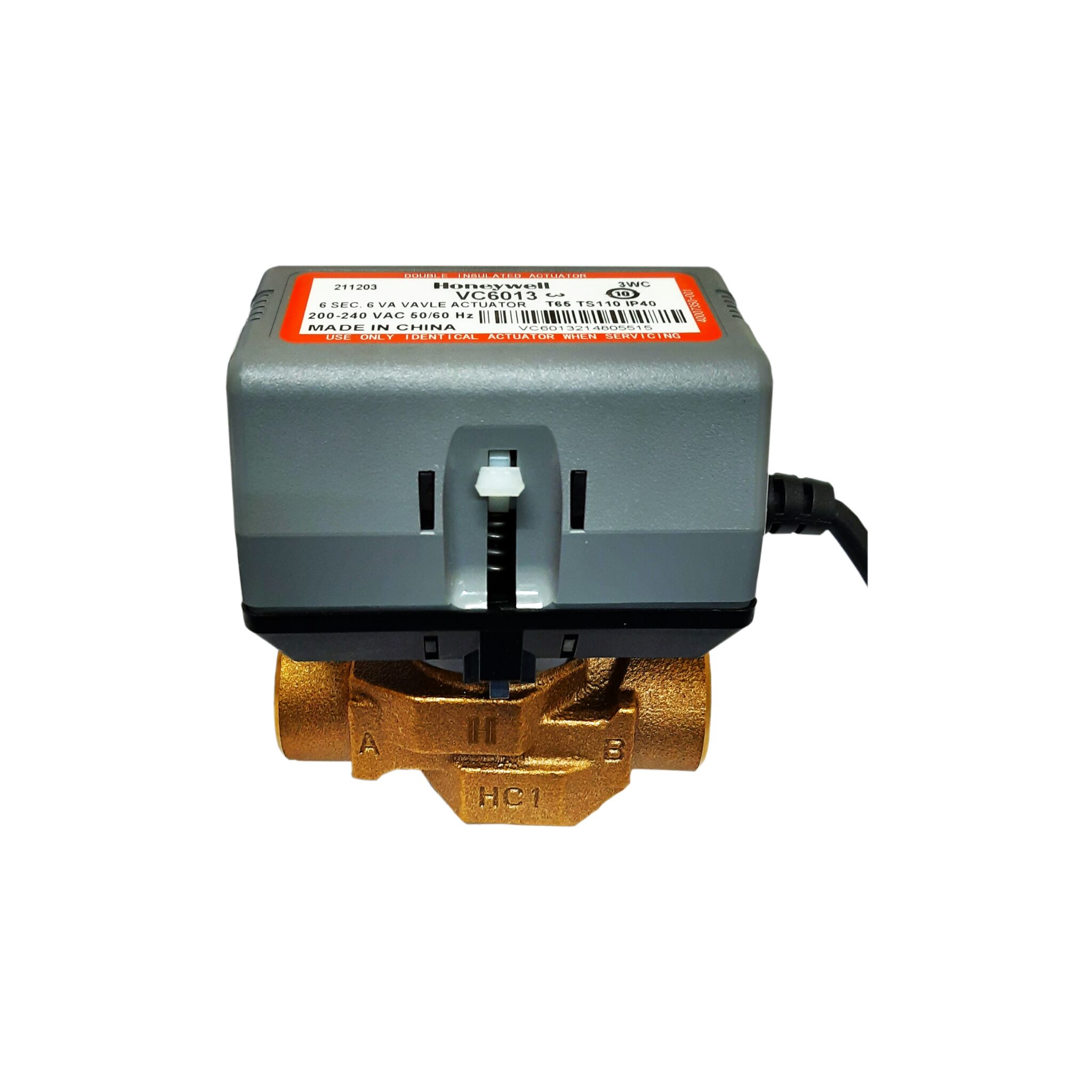

Name: VC6013AP1000T Honeywell FCU Valve
SKU: 59653
Price: 4946.00 INR
Availability: InStock

VC6013AP1000T Honeywell FCU Valve

₹4,946.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	VC6013AP1000T
Size	25mm
Number of Ways	2 ways
Voltage	200-240V ( 50-60 Hz)
Actuator	SPDT-with Molex Connector and 1000mm cable
Body	1″ BSPP ( internal thread )
Cartridge	6.0
Power Consumption	6 Vatt max.at nominal voltages
Nominal timing	Valve opens in 6 Seconds @60 Hz
Electrical Termination	Molex requires mating connector receptacle / housing #39-01-2060 Contacts:- Mini -Fit5556 Series With integral 1000mm lead wire cable
Ambient Temperature	0 – 65 Deg.C
Fluid Temperature	0 – 95 Deg.C
Shipping & Storage Temperature	-40 – 65 Deg. C
Valve Material	Body: Bronze Cartridge: Ryton, Noryl “O” ring seals: EPDM rubber Stem: Stainless steel Actuator cover: Noryl Actuator base: Ryton
Pressure Rating	Static: 20 Bar Burst: 100 Bar

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

VC6013AP1000T Honeywell FCU Valve, VC Series balanced hydronic valves allow greater control of hot and/or cold water flow. The VC Series balanced hydronic are designed for both domestic boiler heating and domestic cooling applications. Honeywell VC6013AP1000T FCU Valve, VC series 2-position hydronic valves are used in domestic and small commercial applications to control the flow of jot and/ or cold water. They consist of an actuator, valve and a cartridge assembly. 2-way valves are designed for ON-OFF “zone” control of domestic systems.
