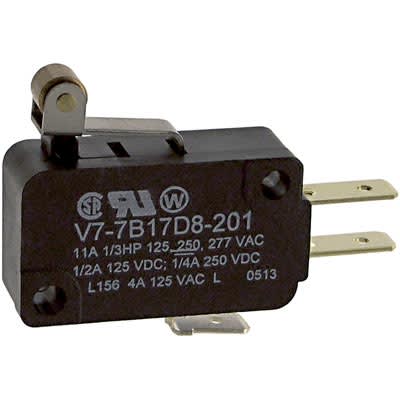

V7-7B17D8-201 Honeywell Micro Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. V7-7B17D8-201
Type V7 Series Miniature Micro Switch
Lever Type Roller 20,6 mm [0.81 in]
Operating Force 150 g max.
Electrical Rating 15 A @ 125 Vac
-40 °C to 85 °C
Circuitry SPDT
Mounting Construction 85 °C 2,9 mm [0.11 in] mtg. holes
Terminal Type 0.250 x 0.032 quick connect spread

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell V7-1C17E9-201 Micro Switch

Description

V7-7B17D8-201 Honeywell Micro Switch , V7 miniature switches are designed for long term-reliability in a rugged switch packaged with a thermoplastic housing. Honeywell V7-7B17D8-201 Micro Switch may be installed in a wide range of applications from simple or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies. The V7 switch is available as a pin plunger style or with optional integral or auxiliary levers to actuate the switch and offer versatility in the application. The switch requires as little as 0,15 Newtons [approximately ½ ounce] to operate for extremely sensitive applications or an operating force of almost 4 Newtons [14 ounces] where higher forces are required. The V7 switch can reliably control logic level electrical loads from less than 0.1 A to power duty switching up to 25 A. Agency certifications for the MICRO SWITCH™ V7 switches are provided through CSA, ENEC, and UL for global use around the world.
