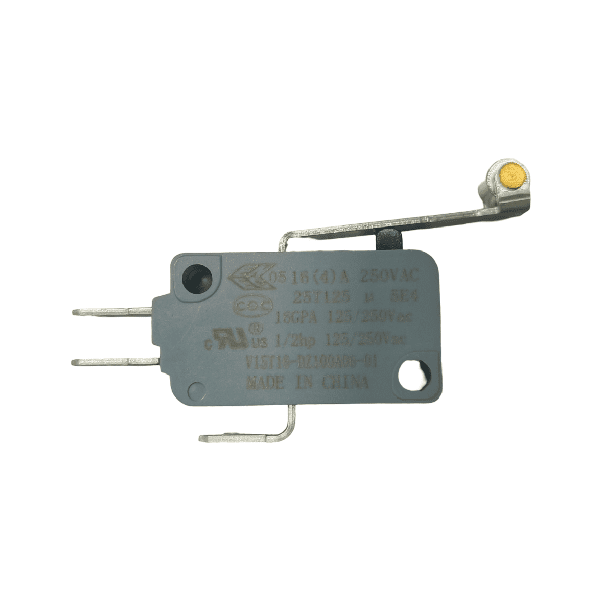

Name: V15T16-DZ100A06-01 Honeywell Micro Switch
SKU: 61708
Price: 283.00 INR
Availability: OutOfStock

V15T16-DZ100A06-01 Honeywell Micro Switch

Available on order

₹283.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	V15T16-DZ100A06-01
Circuitry	SPDT
Operating force	0,15 N to 3,92 N [15g to 400 g]
Termination	Quick connect 4,70 mm x 0,80 mm [0.187 in x 0.032 in]
Actuators	pin plunger, integral lever options
Agency certification	ENEC, CQC, UL, cUL
Operating temperature (manufacturer specified)	code S: -25 °C to 85 °C [-13 °F to 185 °F] code T: -25 °C to 125 °C [-13 °F to 257 °F] code H: -25 °C to 150 °C [-13 °F to 302 °F]
Mechanical life (cycles)	1 million cycles (except for 200g versions of V15S05 and V15T10 which are 500,000 cycles)
Contact material	silver, gold-plated \| cadmium-free option available
Housing material	PBT thermoplastic polyester (standard) PET thermoplastic polyester (V15H high temperature, 150 °C [302 °F])
Electrical Rating	16 A 125 Vac/250 Vac
Operating Force	100 gf; 0,96 N
Lever	Long roller lever, Far from pin plunger

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Honeywell’s MICRO SWITCH V-Basic Standard Switch, V15 Series is an electromechanical switch designed to provide outstanding value in a reliable global package. This switch is often ideal for “low-cost-of-failure” applications, where the cost is minimal to replace or service any failure related to the switch. With a wide variety of operating forces, and amperage ratings, the V15 is designed for numerous types of applications.
Available in both pin plunger and levered styles, the V15 Series also offers a multitude of termination styles to fit almost any application.

FEATURES
• Broad range of electrical loads: 0.1 A, 5 A, 10 A, 16 A, 22 A, 26 A
• Long service life: over one million mechanical operations
• Gold contacts are also available for controlling logic level/ low energy circuits
• World-wide package size acceptance
• UL/CSA, cUL, ENEC, and CQC approvals
• Variants with cadmium-free contacts available

POTENTIAL APPLICATIONS
• Appliances
• Furnaces
• Gaming machines
• Ice makers
• Power washers
• Vending machines
