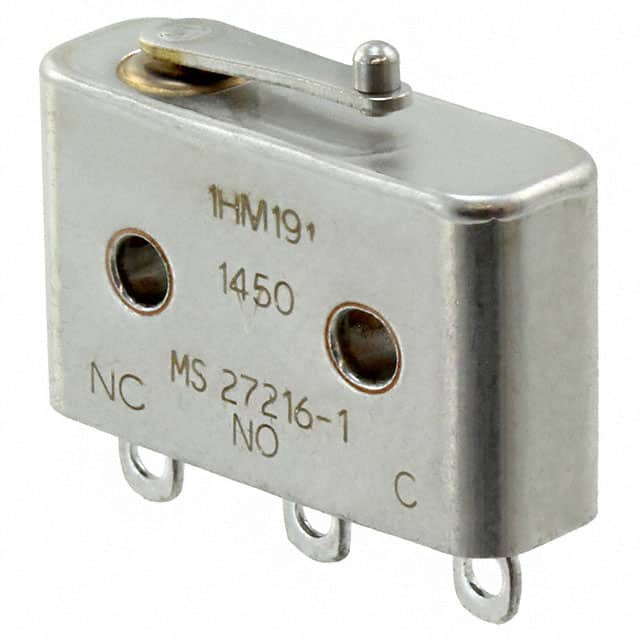

1HM19 Honeywell Hermetically Sealed Micro Switch

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. 1HM19
Circuit SPDT
Current (amps) 4a (AC/DC)
Voltage AC 115v
Voltage DC 28v
Actuator Type Straight Lever
Mounting Type Chassis mount
Termination Style Solder lug
Operating Force 198gf
Release Force 28gf
Operating Temperature -65°c ~ 121°c
Electrical Life 25 000 cycles
Mechanical life 25 000 cycles

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell 1HM19 Hermetically Sealed Micro Switch

Description

1HM19 Honeywell Micro Switch  basic switches are designed for a variety of commercial and military aircraft as well as equipment for deep space applications (high altitude requirements). Honeywell 1HM19 Micro Switch , miniature hermetic sealed switches can be found in a variety of other applications including military land vehicles, marine environments, and other harsh industrial environments. The switches are available as a MIL-PRF-8805 qualified switch. Select HM switches are available with UL 508 certification for industrial or surface transportation applications.
The MICRO SWITCH™ HM hermetic sealed switch design incorporates the glass-to-metal and metal-to-metal sealing with more
than 50 years of use in multiple applications.
The hermetically sealed HM basic switches are ideal where a symbol 5 seal is required for stringent applications including a wide range of temperatures from -184 °C to 260 °C [-300 °F to 500 °F]. Designed with a stainless steel housing and hermetic seal construction, the HM switches are suitable for applications where dust, water, other particulate contaminants, and corrosive gases are present.
The HM basic switch provides versatility with bifurcated gold contacts for controlling low energy loads (mA and mV) reliably or silver contacts for switching power duty loads at 30 vdc or 115 Vac, 400 Hz. Electrical connectivity to the switch is achieved with individual wire leads or “through hole” solder posts adding to the versatility of the HM switch.
