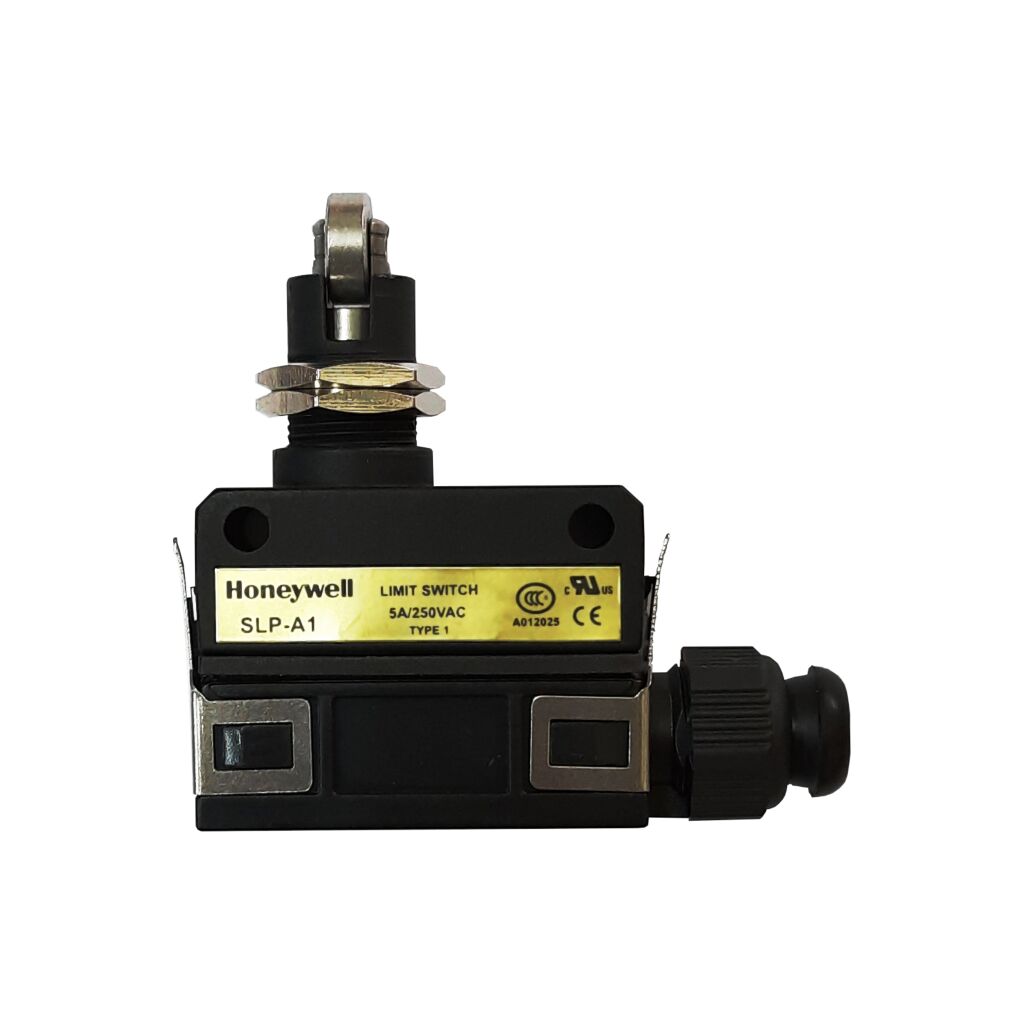

SLP-A1 Honeywell Micro Switch

1,450.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. SLP-A1
Contact Type, Contact Material SPDT, Silver Alloy (Gold plated contact available)
Actuator Top Roller Lever
Operating Speed 0.05mm ~ 0.5m/s
Operating Frequency Mechanically:120 ops/min, Electrically:30 ops/min
Rated Current/Voltage Silver: 5A/250VAC or 5A/30VDC
Gold plated: 0.1A/250VAC or 0.1A/30VDC
Contact Resistance <25mΩ (initial)
Insulation Resistance >100MΩ@500V DC
Dielectric Strength 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying part
Service Life Mechanically:5,000,000 ops
Electrically:500,000 ops at maximum rating
Shock Free position:<10G, Maximum position:<30G
Vibration 10 to 55 Hz, 1.5 mm double amplitude (excluding spring coil type)
Operating Temperature -30 to 80℃
Certification CE, CCC
Degree of Protection IP67

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

SLP-A1 Honeywell Micro Switch

FEATURES

Asia standard dimension

Design for small mounting space.

10A current capacity

Long mechanical life 1×107 operations

Wide range of actuators available

UL, cUL, CCC, CE approved

IP65 (standard type) and IP67 (precision type) Rated

Precision type SLP has built-in IP67 rated cable gland

(also available in M12 quick connector type)
