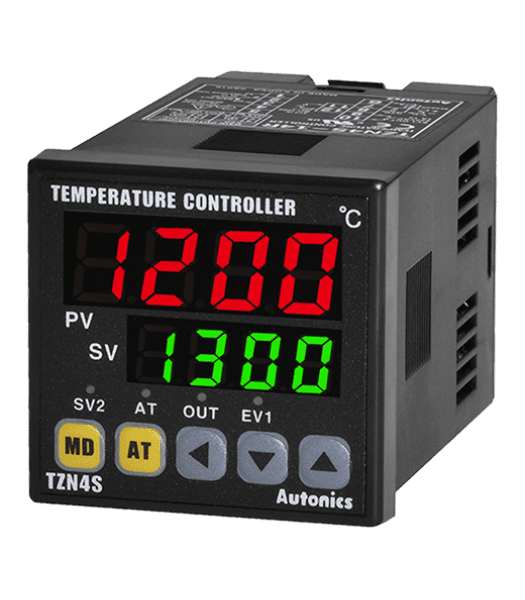

Autonics TZN4S Temperature Controller

TZN4S Autonics Temperature Controller

Available on order

₹8,394.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. TZN4S Series
Digit 9999(4 digit)
Size DIN W48×H48mm(terminal type)
Power supply AC Power: 100-240VAC 50/60Hz
AC/DC Power: 1 24VAC 50/60Hz / 24-48VDC
Power consumption AC Power Max:. 5VA(100-240VAC 50/60Hz)
AC/DC Power: 1 Max. 8VA(24VAC 50/60Hz), Max. 7W(24-48VDC)
Allowable voltage range  90 to 110% of rated voltage
Display accuracy 7 Segment (PV: red, SV: green) LED method
Control type ON/OFF, P, PI, PD, PIDF, PIDS control
Display accuracy F.S. ±0.3% or 3℃, select the higher one
Setting method Front push buttons
Hysteresis 1~100℃(0.1 to 100.0℃) variable(ON/OFF control)
ALARM output Adjustable ON/OFF 1 to 100 (0.1 to 100.0)℃ of alarm output
Proportional band (P) 0.0 to 100.0%
Integral time (I) 0 to 3600 sec.
Derivative time (D) 0 to 3600 sec.
Control period (T) 1 to 120 sec.
Sampling period 0.5 sec.
LBA setting 1 to 999 sec.
RAMP setting Ramp Up, Ramp Down at 1 to 99min.
Dielectric strength 2,000VAC 50/60Hz for 1min. (between power source terminal and input terminal)
Vibration 0.75mm amplitude at frequency of 10 to 55Hz(for 1min.) in each of X, Y, Z direction for 2 hours
Insulation resistance  Min. 100MΩ (at 500VDC megger)
Noise resistance ±2kV the square wave noise (pulse width: 1us) by the noise simulator
Memory retention Approx. 10 years (when using non-volatile semiconductor memory type)
Ambient temperature  -10 to 50℃, storage: -20 to 60℃
Ambient humidity 35 to 85%RH, storage: 35 to 85%RH
Unit weight Approx. 150g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics TK4S-B4CN Temperature Controller

Category: Tags:

Description

TZN4S Autonics Temperature Controller

FEATURES

  • Dual PID auto tuning function: High-speed response of PID control to reach to the desired value fast, low-speed of response of PID control to minimize the overshoot even though response is a little bit slow
  • High display accuracy: ±0.3%(by F.S. value of each input)
  • 2-Steps auto tuning control function
  • Multi-input function (13 kinds of multi-input selection function): Temperature sensor, voltage and current selection function.
  • Various sub output function: Includes in LBA, SBA, 7kinds of alarm output and 4 kinds of alarm option function, PV transmission output(DC4-20mA), RS485 communication output
  • Display the decimal point for analog input
