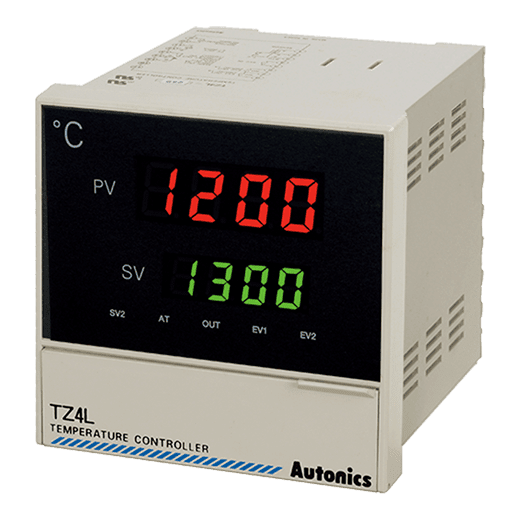

TZ4L Series Autonics Temperature Controller

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. TZ4L Series
Size L: DIN W 96 × H 96 mm
Control output R: Relay output
S: SSR drive output
C: Current Output
Power supply 100 – 240 VAC~ 50/60 Hz ±10%
Display accuracy F.S. ±0.3% or 3℃ higher one
Sampling period 500 ms
Display type 7 Segment (red, green), LED type
Control type ON/OFF, P, PI, PD, PIDF, PIDS control
Hysteresis 1 to 100 (0.1 to 100.0) ℃
Proportional band (P) 0.0 to 100.0%
Mechanical Life • Control output: ≥ 10,000,000 operations
• Option output: ≥ 20,000,000 operations
Electrical Life • Control output: ≥ 100,000 operations
(load resistance: 250 VACᜠ 3 A)
• Option output: ≥ 500,000 operations
(load resistance: 250 VACᜠ 1 A)
Dielectric strength Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz
for 1 min
Vibration 0.75 mm amplitude at frequency of 10 to 55Hz (for 1min) in each X, Y,
Z direction for 2 hours
Insulation resistance ≥ 100 MΩ (500 VDCᜡ megger)
Memory retention ≈ 10 years (non-volatile semiconductor memory type)
Ambient temperature -10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation)
Ambient humidity 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics TK4S-B4CN Temperature Controller

Description

TZ4L Series  Autonics Temperature Controller

FEATURES

• Dual-speed PID control
– High-speed response : minimizes time required to reach SV
– Low-speed response : minimizes overshoot for sensitive temperature control
• High display accuracy : ±0.3% of full-scale value
• 2-step auto tuning function
• Various input types (13 total) : includes temperature sensor and analog inputs
• Various sub-output options
– Various alarm outputs including loop break alarm and sensor break alarm
– PV transmission output (DC 4-20mA)
– RS485 Communication output
• Decimal point display function for analog inputs
