Description

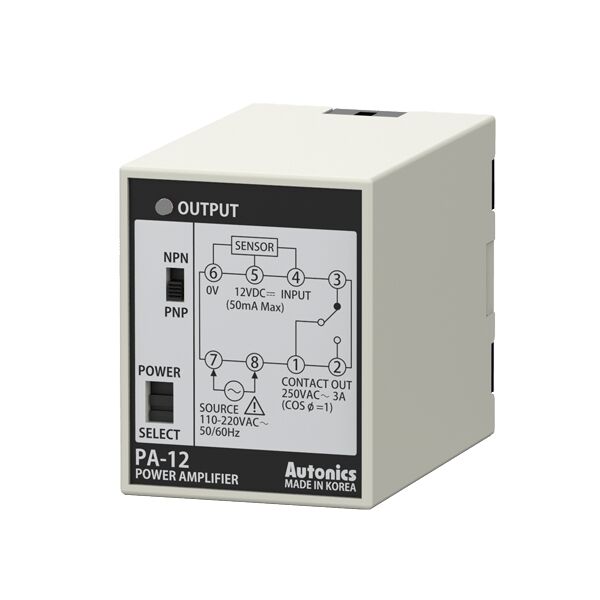

PA-12 Autonics Sensor Controller
FEATURES
- 110/220VAC dual voltage
- NPN/PNP input switch
- High contact capacity (250VAC, 3A resistive load)
- Socket plug-in type (8-pin)
- N.O. or N.C. relay output available
PA-12 Autonics Sensor Controller
₹2,766.00 Excluding GST
For Bulk requirement, Kindly click on enquiry now button
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | PA-12 |
| Type | Selectable NPN/PNP |
| Power supply | Selectable 110-120VAC ~50/60Hz |
| Power Consumption | Approx.4VA |
| Power supply for sensor | 12VDC±10% 50mA |
| Control Output | • Relay contact output(Contact capacity:250VAC~3A, 30VDC~3A resistance load, contact arrangement1a1b)
• Life expectancy Mechanical: Min 10,000,000 operations Electrical: Min 1,00,000 operations |
| Input Signal | • NPN
Short-circuit impedance: Max 1kΩ Open-circuit impedance: Min 100kΩ • PNP High Level: 7-12VDC Low Level: 0-5VDC |
| Input Resistance | 10kΩ |
| Response Time | Input : Min.0.2ms
output: Min. 10ms |
| Environment | Ambient temp. -10 to 50ºC
Ambient humi. 35 to 85%RH |
| Unit Weight | Approx. 269g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
