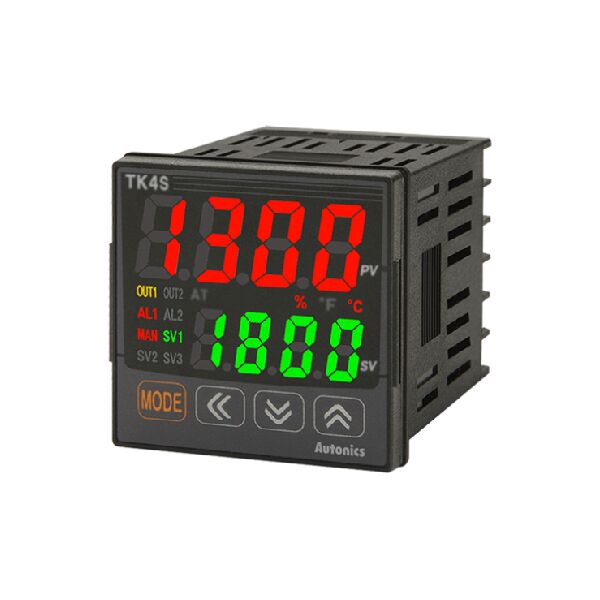

Name: TK4S-14CN Autonics Temperature Controller
SKU: 64922
Price: 5262.00 INR
Availability: OutOfStock

TK4S-14CN Autonics Temperature Controller

Available on order

₹5,262.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model No.	TK4S-14CN
Display	4-digit 7-segment LED
Control Method	ON/OFF control, P, PI, PD, PID control
Input Specification	Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100?, DPt50â„ƒ, JPt100?, Cu100?, Cu50â„ƒ, Nikel 120? Analog: 0-100mV, 0-5V, 1-5V, 0-10V 0-20mA, 4-20mA
Sampling cycle	50ms
Control Output 1	Current(DC0/4-20mA) or SSR drive(11VDC) [ON/OFF]
Option Input	CT, Digital(DI-1)
Option Output	Alarm 1
Power supply	100-240VAC~ 50/60Hz
Protection structure	IP65(front panel)
Display accuracy RTD	•At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Display accuracy Thermocouple	•At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Display accuracy Analog	•At room temperature(23?±5?): ±0.3% F.S. ±1-digit •Out of range of room temperature: ±0.5?% F.S. ±1-digit
Display accuracy CT input	±5% F.S. ±1-digit
Hysteresis(adjustable sensitivity)	RTD/Thermocouples: 1 to 100â„ƒ/â„‰(0.1 to 100.0â„ƒ/â„‰) variable Analog: 1 to 100-digit
Proportional band	0.1 to 999.9?/?(0.1 to 999.9%)
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment Ambient temperature	-10 to 50?, storage: -20 to 60â„ƒ
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 2kV)
Weight	Approx. 150g(approx. 105g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

TK4S-14CN Autonics Temperature Controller

Features

Super high-speed sampling cycle (10 times faster compared to previous models)
:50ms sampling cycle and ±0.3% display-accuracy.
Improved visibility with wide display part and high luminance LED
High performance controlling with heating/cooling control and automatic/manual control modes.
Communication function supported: RS485 (Modbus RTU)
Allows parameter setting by USB port of PC.
SSR drive voltage output / Current output selectable.
SSRP output (standard/phase/cycle control selectable)
