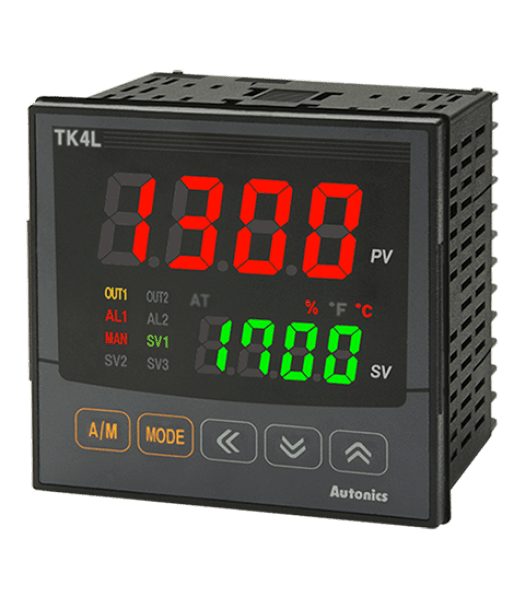

Name: TK4L-24CN Autonics Temperature Controller
SKU: 58896
Price: 7184.00 INR
Availability: OutOfStock

TK4L-24CN Autonics Temperature Controller

Available on order

₹7,184.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model No.	TK4L-24CN
Display	4-digit 7-segment LED
Control Method	ON/OFF control, P, PI, PD, PID control
Input Specification	Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω Analog: 0-100mV, 0-5V, 1-5V, 0-10V 0-20mA, 4-20mA
Sampling Duration	50ms
Control Output 1	Current(DC0/4-20mA) or SSR drive
Option Input	CT, Digital(DI-1/2)
Option Output	Alarm 1/2
Power supply	100-240VAC~ 50/60Hz
Degree Of Protection	IP65(front panel)
Insulation type	Double insulation or reinforced insulation ( Dielectric strength between the measuring input part and the power part: 2kV)
Hysteresis	RTD/Thermocouples: 1 to 100℃/℉ Variable Analog: 1 to 100-digit
Proportional Range	0.1 to 999.9℃/℉(0.1 to 999.9%)
Integral Duration	0 to 9999 sec
Derivative Time	0 to 9999 sec
Control Period	Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
Manual reset	0.0 to 100.0%
Ambient Temperature	-10 to 50℃, Storage: -20 to 60℃
Ambient Humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 294g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The TK4L-24CN Autonics Temperature Controller , TK series high performance PID temperature controllers feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. Autonics TK4L-24CN Temperature Controller offer high precision temperature control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control of any required application.
