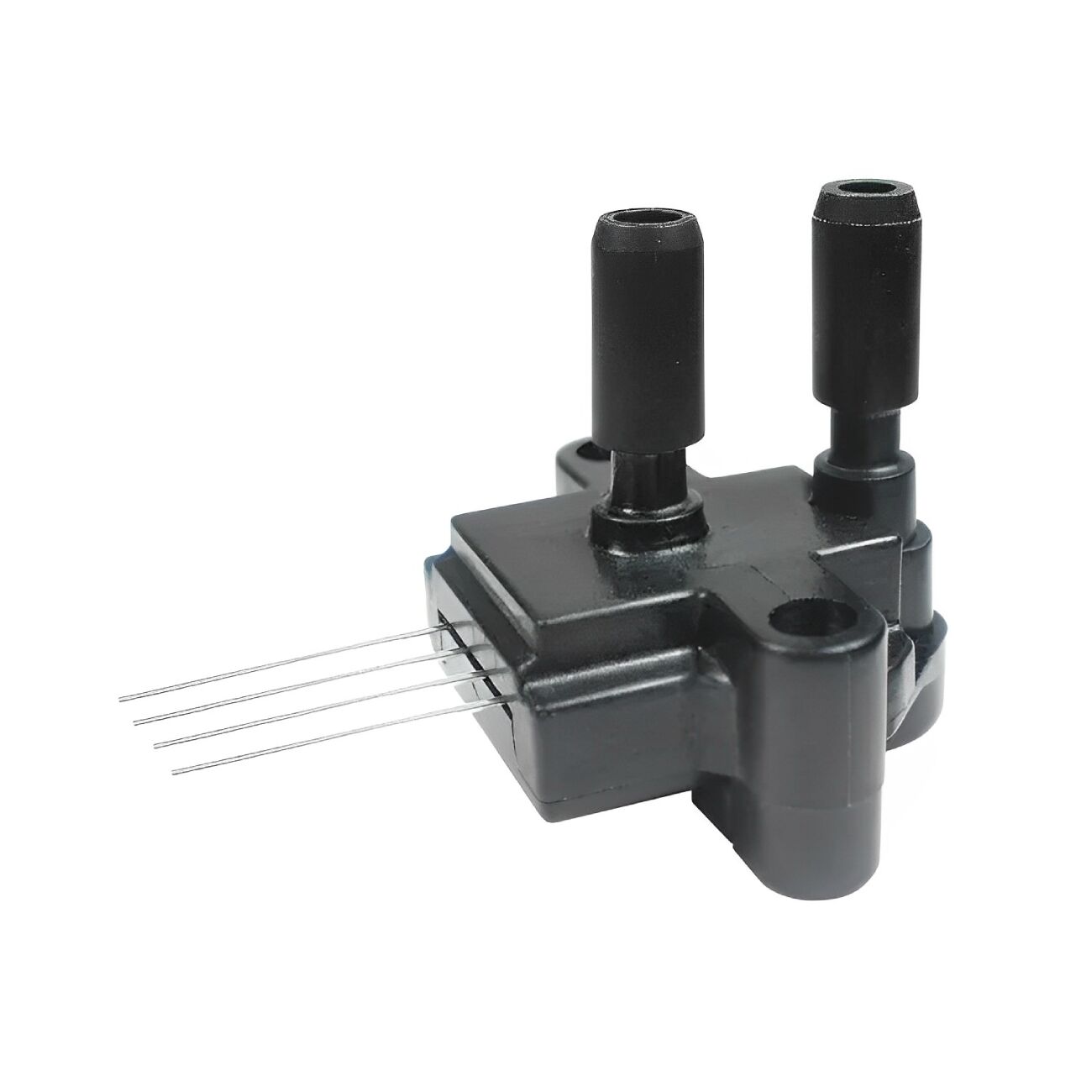

SSCSNBN100MDAA5 Honeywell Board Mount Pressure Sensor

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	SSCSNBN100MDAA5
Product Series	SSC Series Standard Accuracy, Compensated/Amplified
Supply voltage	-0.3 to 6.0 Vdc
Storage temperature	-40 to 85 °C
Humidity	0% to 95% RH, non-condensing
Vibration	Vibration MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 kHz)
Life	Life1 1 million pressure cycles minimum
Package	SIP (Single Inline Pin)
Pressure Port	Fastener mount, dual axial ports, same side
Options	Dry gases only, no diagnostics
Pressure Range	±10 inH2O
Output Type	Analog
Transfer Function	10% to 90% of Vsupply (analog), 214 counts (digital)
Supply Voltage	5.0 Vdc

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The TruStability® Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range.

The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital.

The SSC Series is calibrated over the temperature range of -20 °C to 85 °C [-4 °F to 185 °F]. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc.

These sensors measure absolute, gage, or differential pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between two pressure ports.

The TruStability® pressure sensors are intended for use with non-corrosive, non-ionic gases, such as air and other dry gases. Available options extend the performance of these sensors to non-corrosive, non-ionic liquids for pressure ranges above 40 mbar | 4 kPa | 20 inH2O. All products are designed and manufactured according to ISO 9001 standards.
