Name: SPB-120-24 Autonics Power Supply
SKU: 64867
Price: 5180.00 INR
Availability: OutOfStock

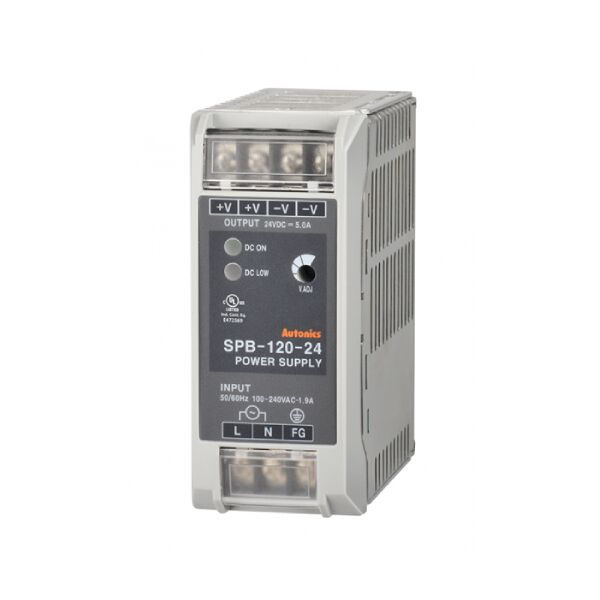

SPB-120-24 Autonics Power Supply

Available on order

₹5,180.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model No.	SPB-120-24
Output power	120W
Input Voltage	100-240VAC~ 50/60Hz
Permissible voltage	85-264VAC~ 50/60Hz, 120-370VDC
Output Voltage	24VDC
Output Current	5A
Mounting type	DIN Rail
Protection	Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
Approval	CE
Input Frequency	50/60Hz
Input Efficiency 100VAC~	0.85
Input Efficiency 240VAC~	0.88
Input Current consumption 100VAC~	1.49A
Input Current consumption 240VAC~	0.61A
Output type Voltage adjustment range	Max. ±5%
Output type Input fluctuation ratio	Max. ±0.5%
Output type Load fluctuation ratio	Max. ±1%
Output type Ripple & Ripple noise	Max. ±1%
Protection structure	IP20(IEC standard)
Environment Ambient temperature	-10 to 50â„ƒ, storage: -25 to 65â„ƒ (surrounding air temp.: Max. 40?)
Environment Ambient humidity	25 to 85%RH, storage: 25 to 90%RH
Weight	Approx. 570g(approx. 466g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Features

DIN rail type and fixing screw type mountings
Built-in overcurrent protection, output short circuit
protection, overheat and over voltage limit protection
circuit (SPB-120)
Built-in power factor correction circuit(SPB-120/240)
Low-voltage LED indicator
Slim-type size (SPB-060:W36xH100xL110mm)
Minimizes noise and ripple
Improves user safety with terminal cover
Designed to minimize heat
Output power: 60W, 120W, 240W
Output voltage: 12VDC, 24VDC, 48VDC
