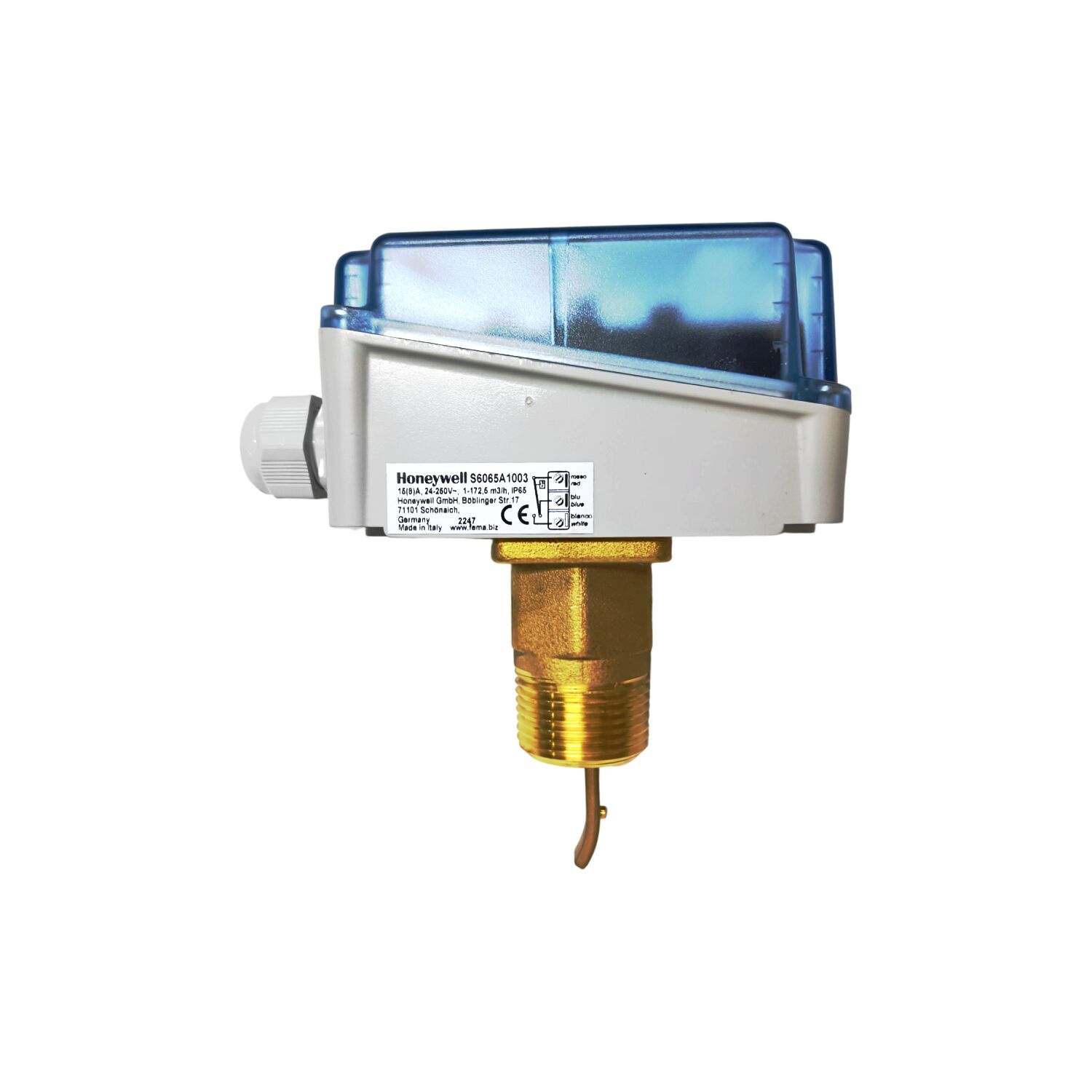

Name: S6065A1003 Honeywell Liquid Flow Switch
SKU: 64615
Price: 14302.00 INR
Availability: OutOfStock

S6065A1003 Honeywell Liquid Flow Switch

Available on order

₹14,302.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Flow medium	non-aggressive liquid
Mounting	Rp 1″ (ISO7/1)
Maximum pipe temperature	120 °C
Pressure	11 bar
Paddle material	1.4404
Lever	yellow brass
Sensor body	yellow brass
Housing dimensions	113 x 63 x 65 mm
Weight	850 g
Switching capacity	15 (8) A, 24…250 Vac
Lifetime	50000 cycles at nominal load
Working temperature	-40…+85 °C at 10…90% rel. humidity, non-condensing
Electrical connection	Screw terminal, wire up to 1.5 mm2 cable ∅6…9 mm
Protection class	I according to EN60730
Protection standard	IP65 according to EN60529
Housing material	ABS and corrosion-protected steel
Accessories	PA2 Paddle set

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

S6065A1003 Honeywell Liquid Flow Switch

The S6065A1003 and S6065A2001 Liquid Flow Switches are designed for monitoring flow rates in pipes employed in HVAC applications. They are suitable for monitoring flow in water, oil, cooling circuits, and lubrication systems. The S6065A2001 is designed for monitoring aggressive liquids. See Table 1 for the reset and switch points for water. Data for other media must be determined empirically

FEATURES

Cost-effective flow switches for HVAC applications.
High-capacity, fully-encapsulated NC/NO micro-switch.
A single type suitable for pipes with a diameter of 1 to 8″.

MOUNTING
The S6065A1003 and S6065A2001 Liquid Flow Switches can be mounted in any desired position far from elbows, valves, and filters.
NOTE: The arrow on the housing must point downstream.
NOTE: When using multiple paddles, they must be
arranged in order of decreasing length downstream, i.e. with the longest paddle facing the oncoming liquid.
In the case of vertical pipes, reset the range to balance the paddle weight. To prevent malfunction caused by impurities in the medium, do not mount the device with the housing upside down.
