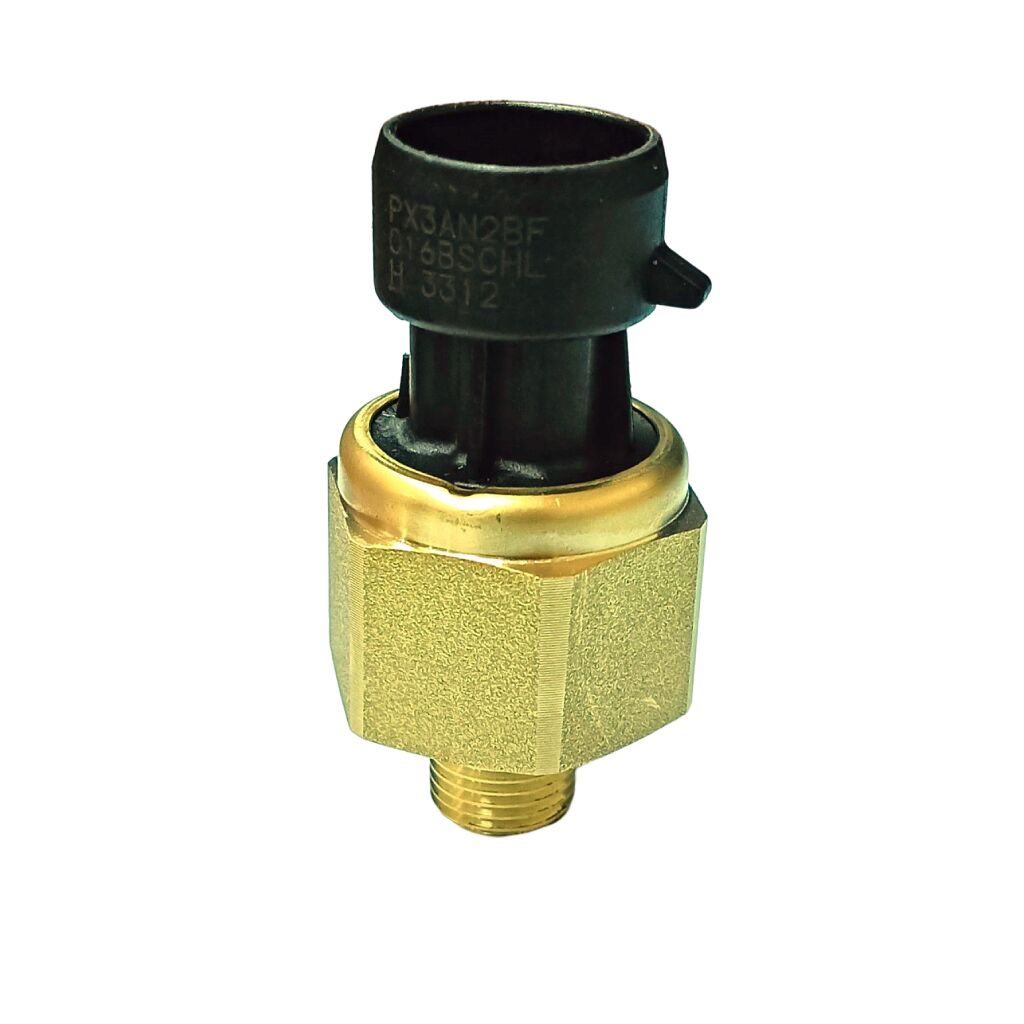

Name: PX3AN2BF016BSCHL Honeywell Pressure Transducer
SKU: 64332
Price: 3499.00 INR
Availability: InStock

PX3AN2BF016BSCHL Honeywell Pressure Transducer

₹3,499.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	PX3AN2BF016BSCHL
Type	Heavy Duty Pressure Transducer
Electrical Connector Type	Metri-Pack 150, Standard (UL V-0)
Pressure Port Type	1/8-27 NPT (ANSI/ASME B1.20.1)
Pressure Range	16 bar
Output Transfer Function	Current: 4 mA to 20 mA
Housing Body Material	Brass (C36000)
Pressure Reference	Sealed gage
Output Transfer Function	Ratiometric: 5.0 V, 10% to 90% Vs
Operating temperature Range	-40°C to 125°C
Storage temperature range	-40°C to 125°C
Accuracy	±0.25 %FSS
Response time	<2 ms
Dielectric strength	<1 mA at 1500 Vac

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

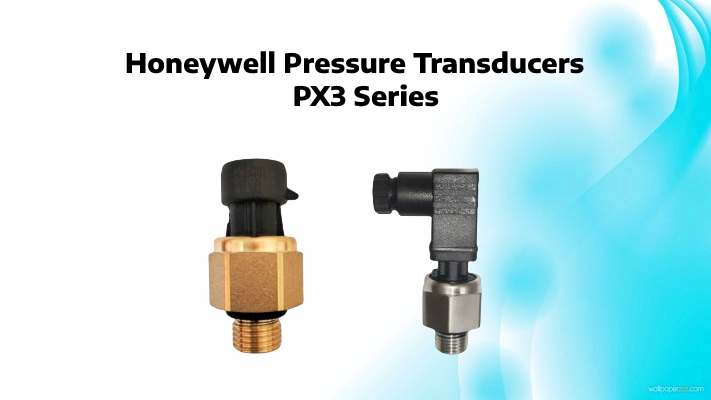

PX3AN2BF016BSCHL Honeywell Pressure Transducer use piezo resistive sensing technology with ASIC(Application Specific Integrated Circuit) signal conditioning in a brass or stainless steel housing and Metri-Pack 150, DIN, or cable harness electrical connections. The Honeywell PX3AG1BS015BSAAX Pressure Transducers, PX3 Series is calibrated and temperature compensated from -40°C to 125°C [-40°Fto 257°F].

POTENTIAL APPLICATIONS
• Industrial: Refrigerant pressure monitoring in HVAC/R systems; dry air system pressure, process controls and automation
• Transportation: Dry air system monitoring; hydraulic, brake, and engine oil fluid pressure monitoring; air brake pressure monitoring
The PX3 Series is not recommended for use with media involving water, saturated air such as steam and vapor, and ammonia.
