₹2,812.00 Excluding GST
Available in Stock
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PSN40-20DN |
| Sensing distance | 20mm ±10% |
| Hysteresis | Max. 10% of sensing distance |
| Standard Sensing Target | 60×60×1mm(iron) |
| Setting Distance | 0∼14 mm |
| Power Supply(operation voltage) | 12-24 VDC (1- 30 VDC) |
| Current consumption | Max.10mA |
| Response Frequency *1 | 100 Hz |
| Residual Voltage | Max.1.5V |
| Affection by Temp. | ±10% Max. for sensing distance at +20°C within temperature range of -25 ∼ +70°C |
| Control output | Max. 200mA |
| Insulation resistance | Min. 50M Ω (at 500 VDC mega) |
| Dielectric strength | 1500VAC 50/60Hz for 1 minute |
| Vibration | 1mm amplitude at frequency of 10∼55Hz in each of X, Y, Z, directions for 2 hours |
| Shock | 500m/s² of (50G) in X, Y, Z direction 3 times |
| Indicator | Operation Indicator (Red Led) |
| Ambient Temperature | -25 ∼ +70°C (at non-freezing status) |
| Storage temperature | -30 ∼ +80°C (at non-freezing status) |
| Ambient humidity | 35 ∼ 90%RH |
| protection Circuit | Surge, reverse power polarity, Overcurrent protection circuit |
| protection | IP67 (IEC Standard) |
| cable spec. | ø5×2P, 2m |
| Unit weight | Approx.158g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

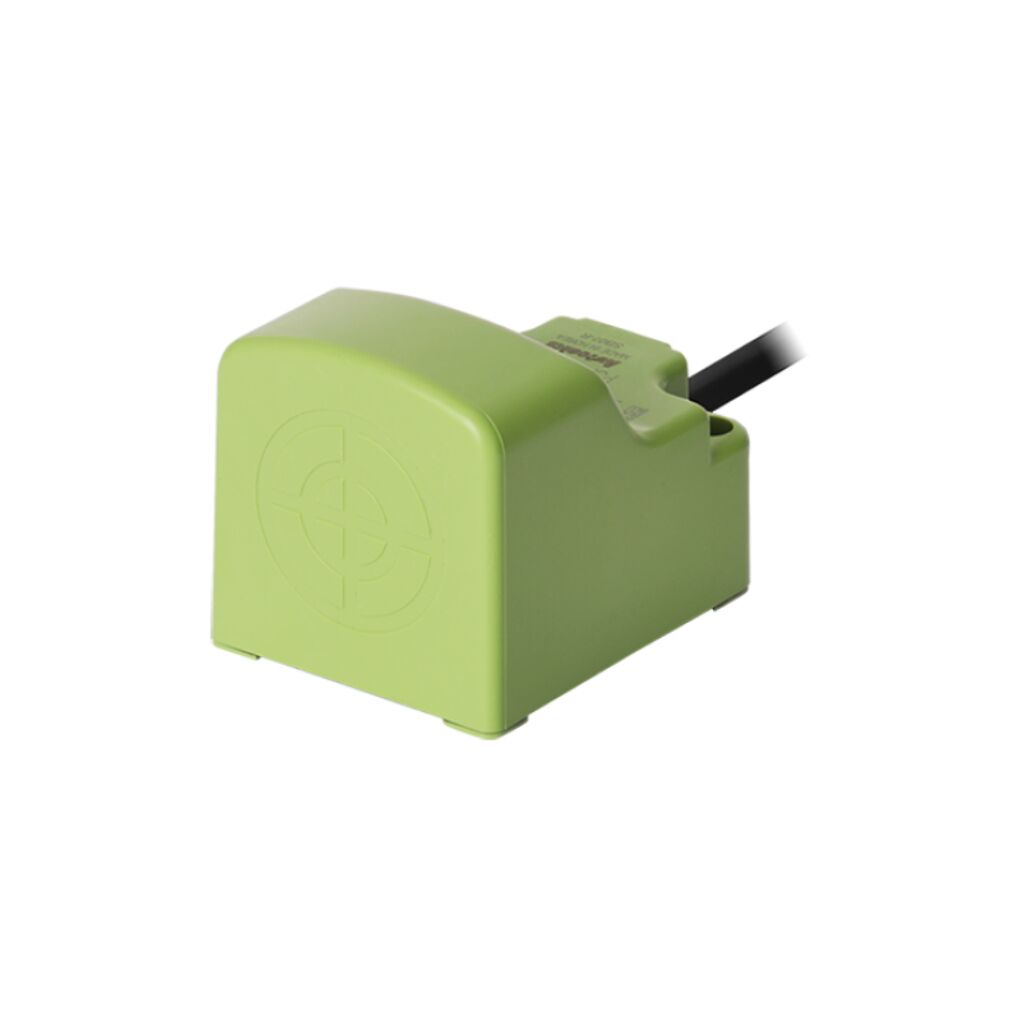

PSN40-20DN Autonics Proximity Sensor
Rectangular Type Proximity sensor.
Features:
