₹2,136.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Wire Type | DC 3 – wire type |
| Model | PRD18-14DN |
| Sensing distance | 14mm ±10% |
| Hysteresis | Max. 10% of sensing distance |
| Standard Sensing Target | 40×40×1mm(iron) |
| Setting Distance | 0∼ 9.8mm |
| Power Supply(operation voltage) | 12-24VDC (10-30VDC) |
| current consumption | Max. 10mA |
| Response Frequency *1 | 200 Hz |
| Residual Voltage | Max. 1.5V |
| Affection by Temp. | within ±10% Max. for sensing distance at +20°C within temperature range of -25 to +70°C |
| Control output | 200mA |
| Insulation resistance | Min. 50M Ω (at 500 VDC mega) |
| Dielectric strength | 1500VAC 50/60Hz for 1 minute |
| Vibration | 1mm amplitude at frequency of 10∼55Hz in each of X, Y, Z, directions for 2 hours |
| Shock | 500m/s² of (50G) in X, Y, Z direction 3 times |
| Indicator | Operation Indicator (Red Led) |
| Ambient Temperature | -25 ∼ +70°C (non-freezing condition) |
| Storage temperature | -30 ∼ +80°C (non-freezing condition) |
| Ambient humidity | 35 ∼ 90%RH |
| protection Circuit | Surge, reverse power polarity, Overcurrent protection circuit |
| protection | IP67 (IEC Standard) |
| Unit weight | Approx.110g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

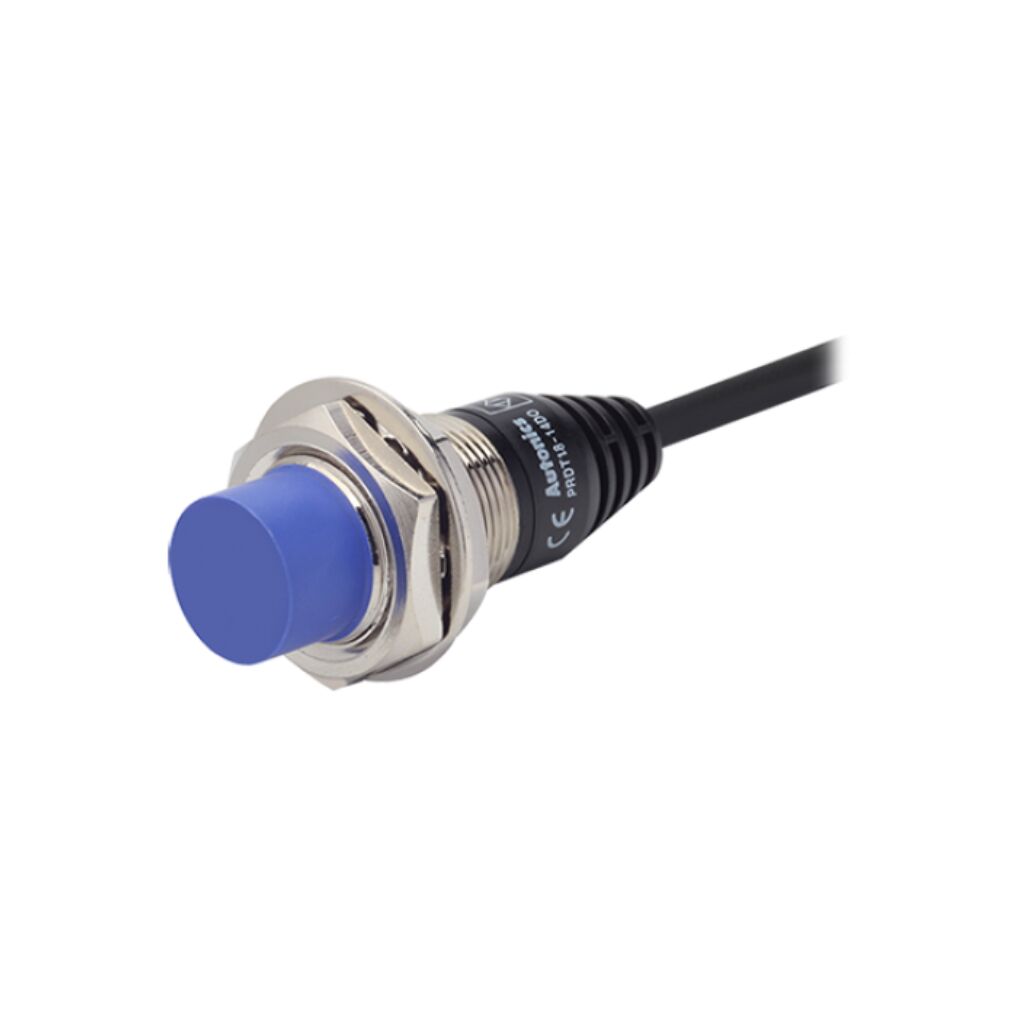

PRD18-14DN Autonics Proximity Sensor
Rectangular Type Proximity sensor.
Features:
