Name: PRDCM08-4DP Autonics Inductive Proximity Sensor
SKU: 64887
Price: 3223.00 INR
Availability: OutOfStock

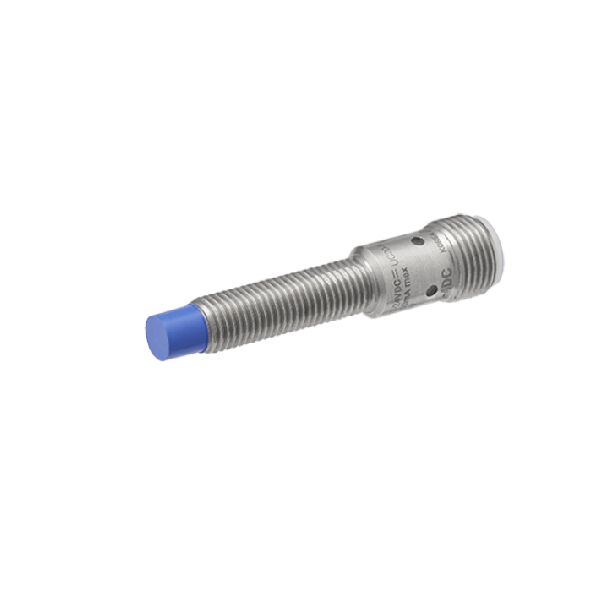

PRDCM08-4DP Autonics Inductive Proximity Sensor

Available on order

₹3,223.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model	PRDCM08-4DP
Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M8
Sensing distance	4mm
Installation	Non-flush
Standard sensing target	12×12×1mm(iron)
Response frequency	800Hz
Current specification	Current consumption: Max. 10mA
Control output	PNP Normally Open
Material	Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Cable Standard ( material )	Standard connector
Protection structure	IP67(IEC standard)
Affection by temperature	≤ ± 10 % for sensing distance at ambient temperature 20 ℃ (DIA. of sensing side Ø 8 mm: ≤ ± 15 %)
Body length	Standard type
Environment Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 15% of sensing distance
Residual voltage	Max. 2V
Weight	Approx. 12g(approx. 32g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

PRDCM08-4DP Autonics Inductive Proximity Sensor

Features:

Long sensing distance
(1.5 to 2 times longer sensing distance guaran-
teed compared to existing models)
Advanced durability as comprehensive existing case
and rear cap structure Upgrade
Easy to check operation from various angles with
4-side LED Upgrade
Shorten the time of maintenance
Improved the noise resistance with dedicated IC
Built-in surge protection, reverse polarity protection,
overcurrent protection circuit
Red LED operation indicator
Protection structure IP67(IEC standard)
