₹2,337.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PRCML18-8DP |
| Wire type and power | DC 3-wire type 12-24VDC |
| Sensing side diameter | M18 |
| Sensing distance | 8mm |
| Installation | Non-flush |
| Standard sensing target | 25×25×1mm(iron) |
| Response frequency | 350Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Cable Standard/material | Standard connector |
| Protection structure | IP67(IEC standard) |
| Approval | CE, EAC |
| Body length | Long body |
| Environment Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | Approx. 85g(approx. 73g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

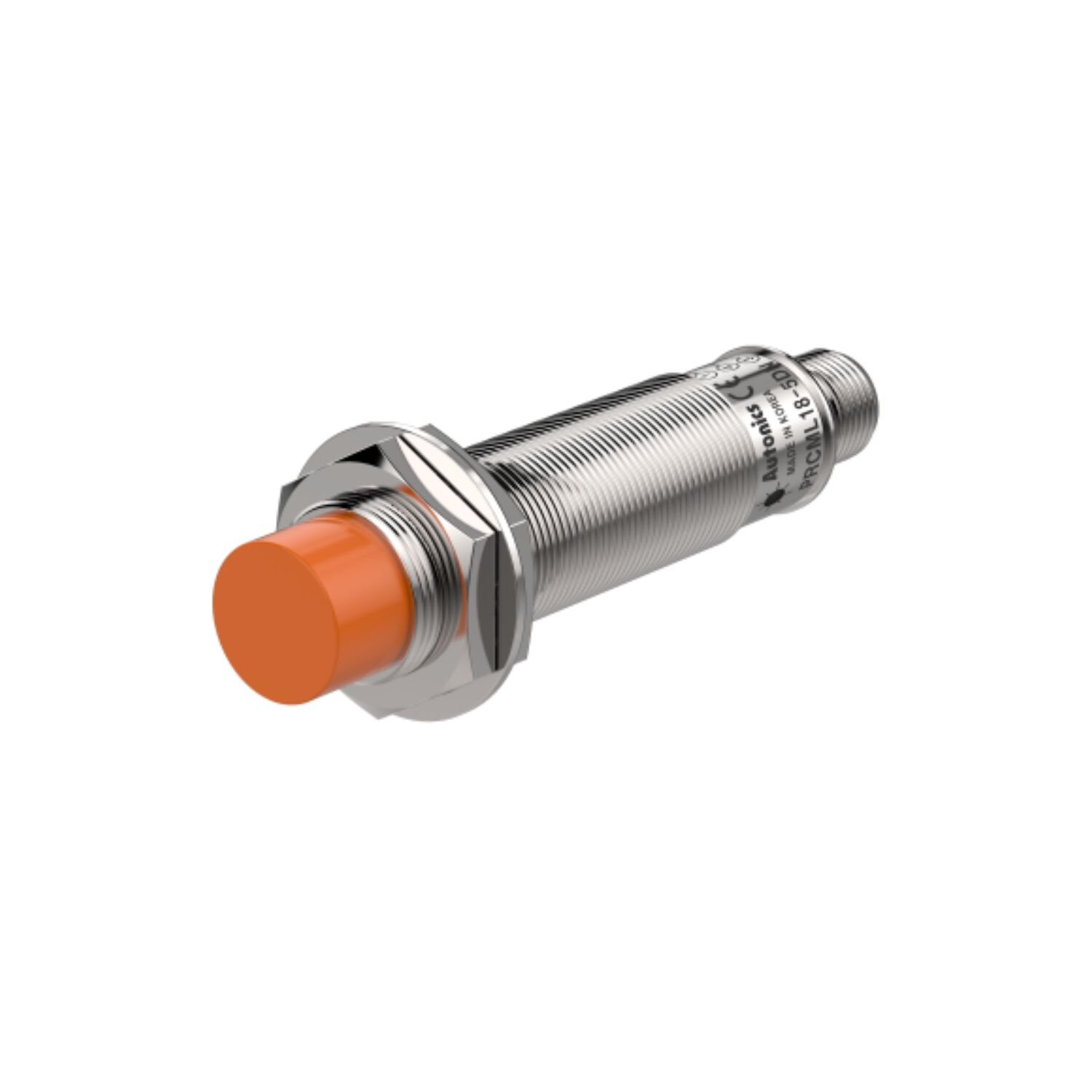

PRCML18-8DP Autonics Proximity Sensor
Features
