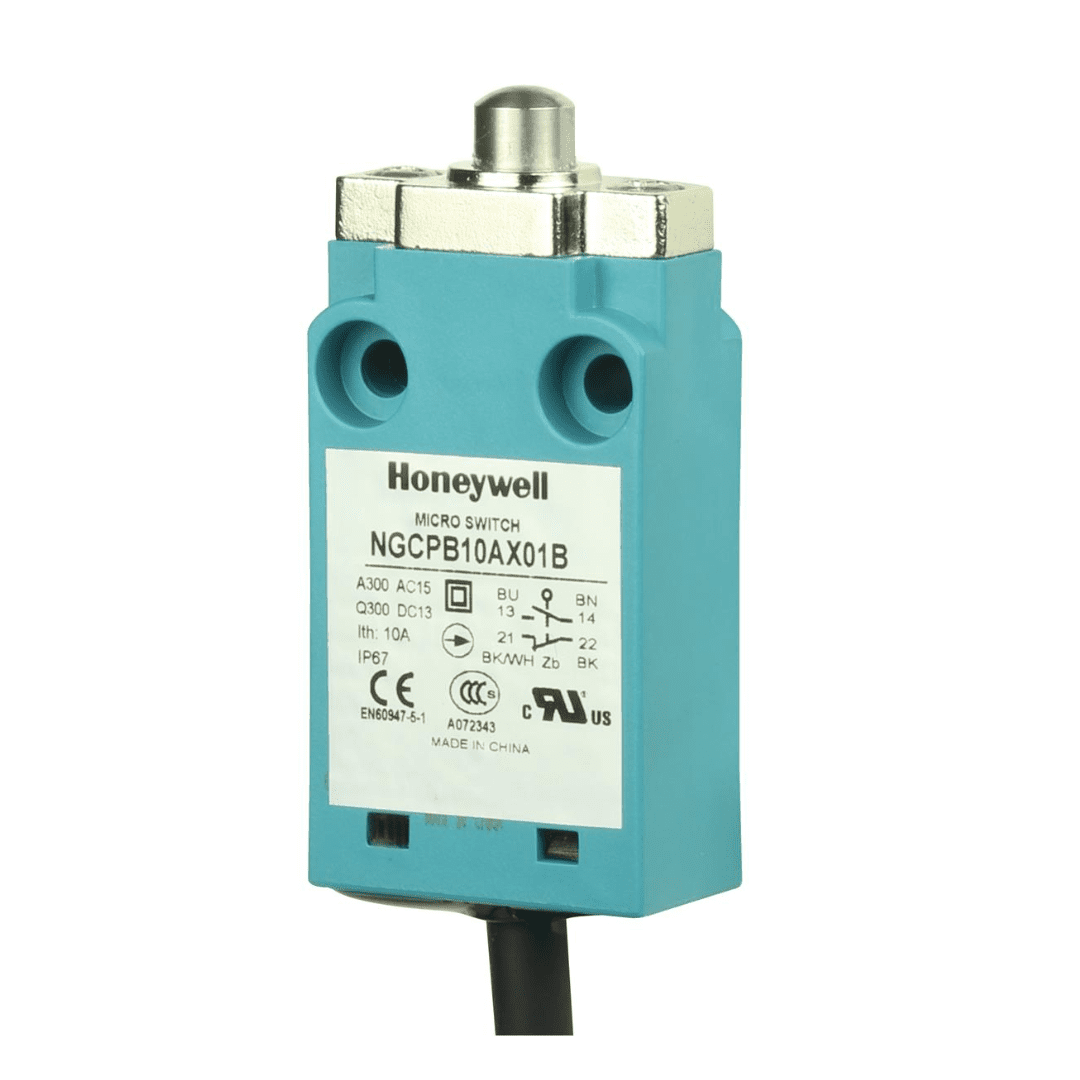

NGCPB10AX01B Honeywell Limit Switch

Product Details:

Product Description
Brand Honeywell
Model No. NGCPB10AX01B
Material approval standard (only applicable for product with non-halogen cable)
DIN5510-2-2009 (flammability rating: S3; smoke rating: > SRI; welt rating: ST2;
toxic gas rating: FED(TZUL=15min)< 1)
Switching options SPDT, DPDT; snap action contacts (1NC/1NO, 2NC/2NO)
Sealing NEMA 1, 4, 12, 13; IP67 per IEC 60529
suitable for outdoor applications
Contacts snap action, positive break
standard: silver alloy; gold: gold-plated
Operating temperature -25°C to 75°C [ -13°F to 167°F] (for extended operating temperature options, see table 3)
Storage temperature -40°C to 85°C [-40°F to 185°F]
Mechanical endurance 1NC/1NO: 5,000,000 cycles min. at 120 CPM
2NC/2NO: 5,000,000 cycles min. at 60 CPM – for AgNi contacts only
For wedge actuation: 500,000 cycles min. at 60 CPM for both 1NC/1NO and 2NC/2NO
Applicable only for Head type C, L, P, Q, S, and T
Contact bounce limit 50 msec max., use proper signal filter accordingly
Thermal current 1NC/1NO: 10 A; 2NC/2NO: 5 A
Rated insulation voltage (Ui) 1NC/1NO: 400 V as per IEC 60947-5-1
2NC/2NO: 250 V as per IEC 60947-5-1

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

NGCPB10AX01B Honeywell Limit Switch

Honeywell’s MICRO SWITCH™ Compact Limit Switches, NGC Series, are a configurable platform of medium-duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. MICRO SWITCH™ NGC Series can be configured more than 380,000 ways, carries global approvals, and are sealed to IP67 for potential use in indoor and outdoor applications.
