Name: MS8120F1200/B Honeywell Damper Actuator
SKU: 65238
Price: 11625.00 INR
Availability: OutOfStock

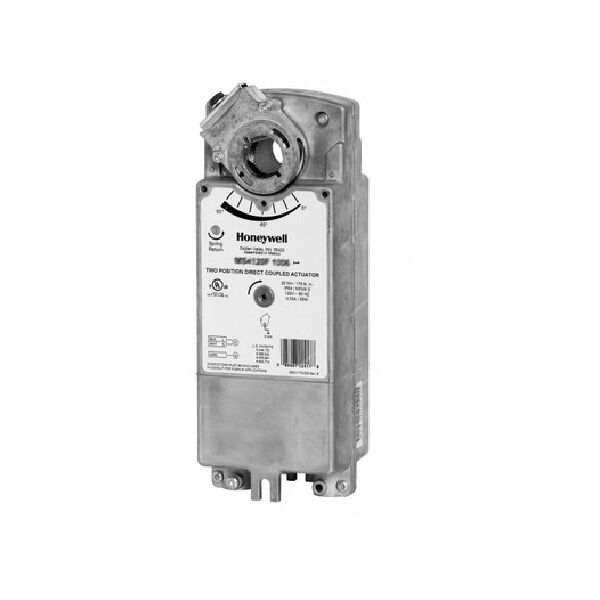

MS8120F1200/B Honeywell Damper Actuator

₹11,625.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	MS8120F1200/B
Type	Damper Actuator
Voltage (Vac)	24 Vac +20%, -10%, 50/60 Hz (Class 2)
Internal Auxiliary Switches	2 SPST
Minimum Damper Shaft Length	1 in. (25 mm); 3-1/4 (83 mm) recommended
Stroke	95° ± 3°, mechanically limited
Driving Power	0.20A, 35W
Holding Power	0.14A, 10W
Electrical Connections	1m halogenfree, silicone-free wire
Mounting	Self-centering shaft adapter. Round Damper Shafts: 0.5 to 1.06 in. Square Damper Shafts: 1/2 to 3/4 in
Temperature Ratings	Ambient: -40°F to 130°F (-40°C to 55°C). Shipping and Storage: -40°F to 140°F (-40°C to 60°C).
Humidity Ratings	5% to 95% RH noncondensing
Controller Type	Line voltage (230 Vac), 2-position, spst
Timing (At Rated Torque and Voltage)	Drive Open: 15 seconds typical. Spring Close: 15 seconds typical
Weight	2.8kg

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

MS8120F1200/B Honeywell Damper Actuator , The MS4120F, MS4620F, MS8120F, S2024-F, andS20230-F Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for on/off damper control.

The actuator accepts an on/off signal from a single-pole, single-throw (spst) controller.

Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.

Designed to operate reliably in smoke control systems requiring Underwriter’s Laboratories Inc. UL555S ratings up to 350°F, if applicable.

FEATURES
• 175 lb-in. (20 Nm) minimum driving torque at 350°F
(176°C).
• Reversible mounting facilitates use in either
clockwise (cw) or counterclockwise (ccw) spring
rotation.
• Integral spring return ensures level of return torque.
• Stainless steel internal spring.
• Fifteen-second spring return timing.
• No special cycling required during long-term
holding. (See Operation section.)
• No audible noise during holding.
• Models available for 24, 120, and 230 Vac
applications.
• Ninety-five degree angle of rotation.
• Actuator holds rated torque at reduced power level.
• Die-cast aluminum housing.
• Housing design allows flush mounting to damper.
• Patented Self-Centering Shaft Adapter (SCSA).
Patent Number: US 6,505,991
• Designed to operate reliably in smoke control
systems requiring Underwriter’s Laboratories Inc.
UL555S ratings up to 350°F.
• Non-UL marked models available.
• 5 year warranty from date of installation.
