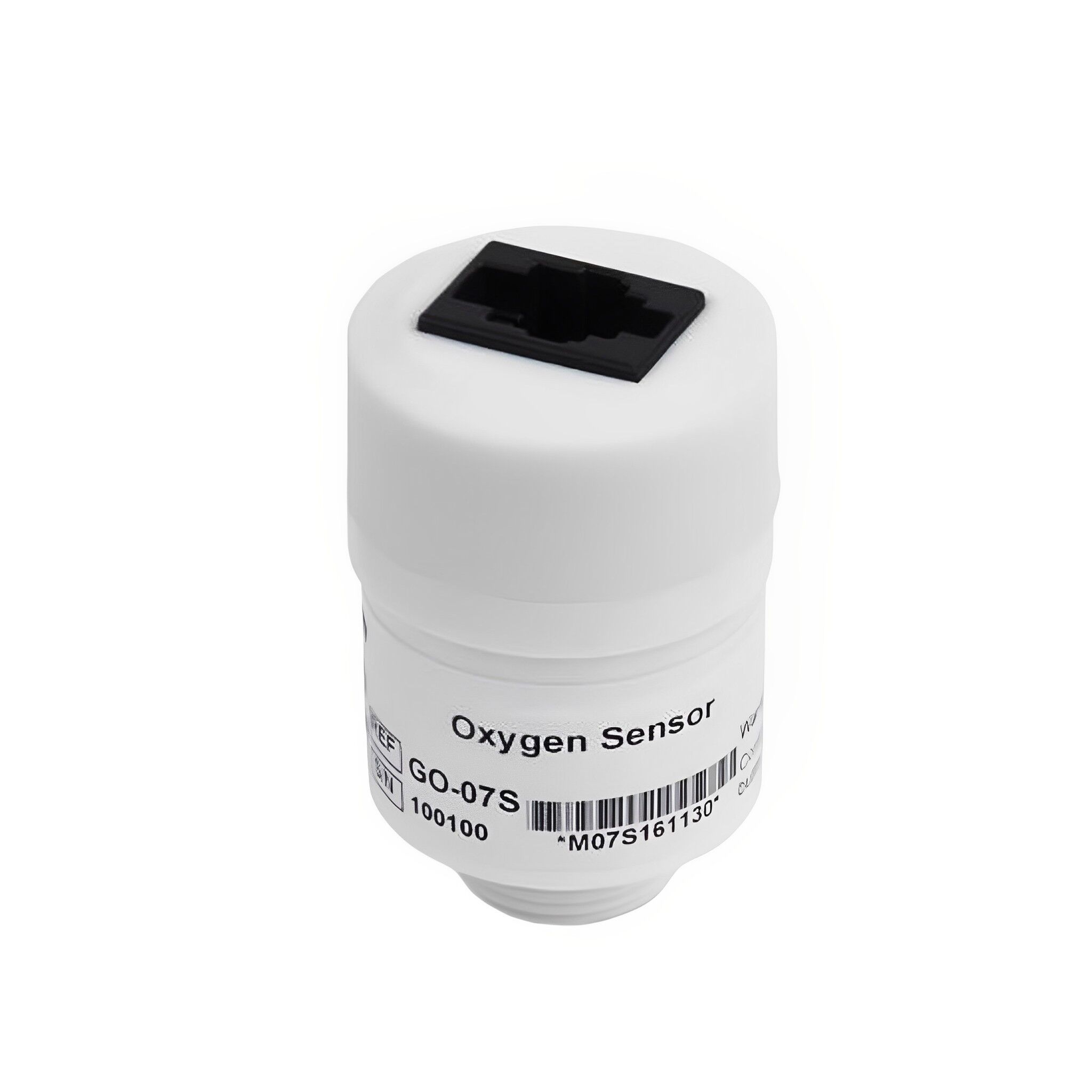

MOX3(AA829-M10) City Technology Medical Sensor

5,999.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button





Product Details:

Product Description
Brand City Technology
Model Number Mox3
Operating Principle Partial pressure electrochemical
Output 9 mV to 13 mV in 210 mBar O2
Measurement Range 0 mBar to 1500 mBar O2
Response Time (T90) <15 s (air to 100% O2)
Baseline Offset <200 μV
Temperature Compensation <2% O2 equivalent (0°C to 40°C)
External Load Resistor 10 kΩ minimum
Connector 3-pin Molex Header: (Molex 22-29-2031)
Housing Material White ABS
Weight 39 g (nominal)
Operating Temperature Range -20°C to +50°C
Operating Pressure Range 0.5 Bar to 2.0 Bar
Operating Humidity Range 0% to 99% RH noncondensing
Long-Term Ouput Drift in 100% O2 < 5% signal loss/year
Recommended Storage Temperature -10°C to +40°C

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Mox3 (AA829-M10) Medical Sensor, CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into instruments and operation. When using Mox3 Medical Sensor with printed circuit boards (PCBs), degreasing agents should be used before the sensor is fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic
These sensors are designed to be used to monitor the partial pressure of oxygen in anaesthesia (not including xenon), critical care, neonatal incubators, and general oxygen monitors.

Key Features and Benifits :

  • Meets the requirements of ISO 80601-2-55
  • Linear output from 0 % to 100 % O2
  • 13-month warranty
  • RoHS compliant
