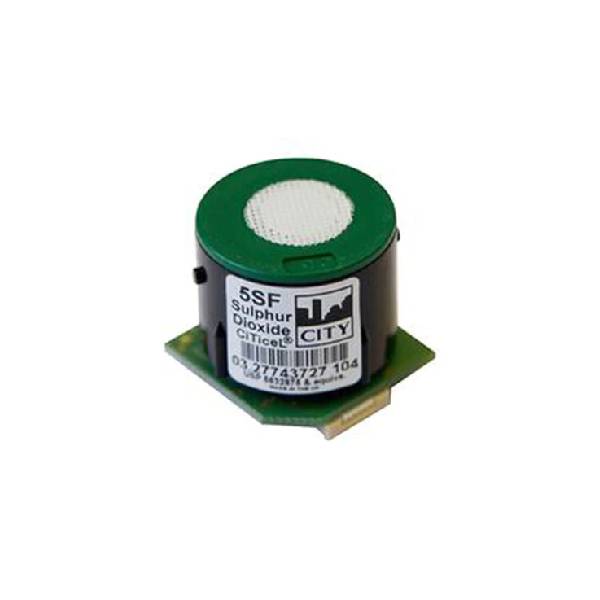

5SF (AD526-W00) City Technology Sulphur Dioxide Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	City Technology
Model Number	5SF (AD526-W00)
Nominal Range	0-2000ppm
Maximum Overload	5000ppm
Expected Operating Life	Two years in air
Output Signal	0.10 ± 0.02µA/ppm
Resolution	1ppm
Temperature Range	-20°C to +50°C
Pressure Range	Atmospheric ± 10%
Pressure Coefficient	0.004 % signal/mBar
T90 Response Time	<30 seconds
Relative Humidity Range	15 to 90% non-condensing
Typical Baseline Range (pure air)	0 ± 2ppm equivalent
Maximum Zero Shift (+20°C to +40°C)	5ppm equivalent
Long Term Output Drift	<2% signal loss/month
Recommended Load Resistor	10 Ω
Bias Voltage	Not required
Repeatability	1% of signal
Output Linearity	Linear
Colour Coding	Green

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

5SF (AD526-W00) City Technology Sulphur Dioxide Sensor

CiTiceLs may exhibit a response to certain gases in a sample other than the target gas. The table below shows the
typical response of 5SF sensors to a number of common cross-interfering gases. The figures are expressed as a
percentage of the primary sensitivity (i.e. sulphur dioxide = 100%).
