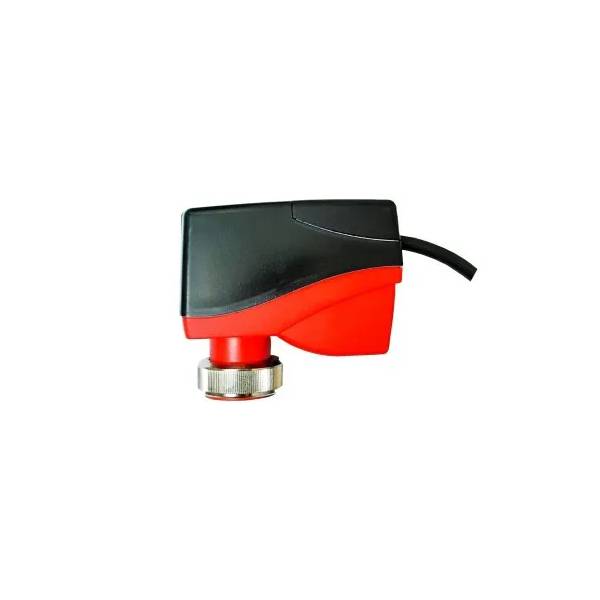

MLP75MAB Honeywell Actuator

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	MLP75MAB
Actuator Technology	Electrical, bi-directional synchronous motor
Operation	Floating / Modulating (universal)
Supply Voltage	24V AC/DC ±10%, 50/60 Hz
Failsafe Function	No
Control Signal	Analog 0(2)-10V DC, <0.5mA or digital 3-point floating and ON/OFF
Actuating Force	600N -50N/+100N
Protection Rating	IP54 incl. upside-down, class III, indoor use only
Weight	0.30 kg / 0.67 lb
Valve Size Compatibility	DN40 – DN50

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

MLP75MAB Honeywell Actuator

PRECISE CONTROL. LOW ENERGY WASTAGE (HIGH ENERGY SAVINGS).
The new Honeywell VPI Pressure Independent Control Valves and Actuators integrates the flow, pressure and temperature control functions in a single valve and then automatically controlling the flow in each hydronic system circuit to maintain temperature and comfort when pressures fluctuate.
• Assures correct flow for each unit automatically – at all load conditions, securing optimal comfort.
• Maintains system balance perfectly, under all conditions, increases the energy efficiency and leads to
savings on energy costs.
• Accurate flow regulation allows for the optimum sizing of chillers, boilers and pumps
• Full range of sizes from 15 mm (1/2″) to 250 mm (10″).
