Honeywell Non Return Valve

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. BSV4-CWD Series
Sizes DN50-DN300
Nominal pressure PN16
Medium Temperature -10°C~ +110°C Maximum
Material Body- IS:210,Gr. FG200
Seat- EPDM
Shaft- ASTM A276, GR. SS410
Spring- AISI 302
O-Rings- NITRILE / EPDM
Plug- M.S. (crome plated)
Fasteners- Stainless Steel
Plates- D.I (Lapped)
Seal Test pressure 17bar
Shell Test pressure 24bar
Flange standard ISO7005-1(GB/T9113) / IS:1538
Medium Type Water

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

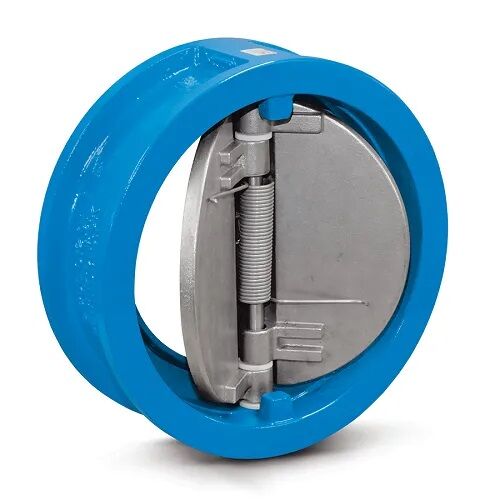

The Honeywell Non Return Valve BSV4-CWD Dual Plate Check Valves is designed for Chilled & Hot Water for purpose non-return valve that is stronger, lighter in weight and smaller in size as compared to other Check valve.



Features

• Wide Size range (DN50…DN300)
• Cast iron Body
• Lapped Ductile Iron disc
• Wafer type and flange type Connection

BSV4-CWD
