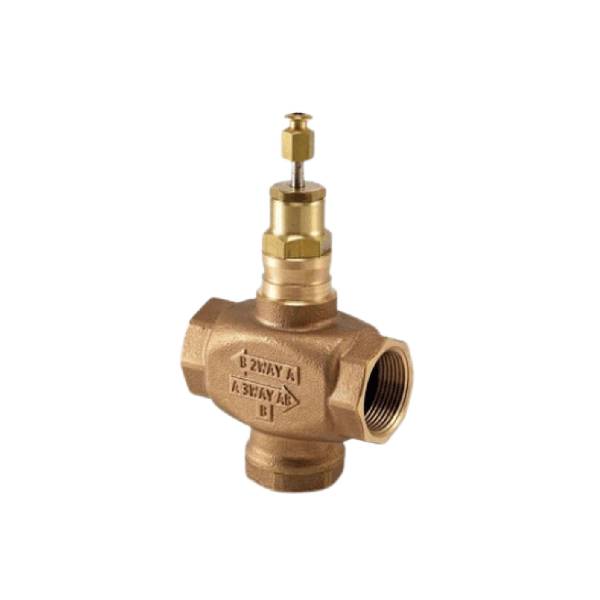

V5011P2002 Honeywell Valve

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. V5011P2002
Pipe Connections Internal BSPT-threaded connections
Seat Stainless steel, replaceable
ANSI Body Class  300 psi.
Approximate
Leakage Rate
0.05 percent Cv. 0.05 percent Cv.
Packing Spring-loaded, carbon fiber reinforced
PTFE V-rings
Stem Stainless steel.
Stroke 3/4 in. (20 mm).
Rangeability 50:1 per VDI/VDE 2173.
Pattern 2-way, straight-through.
Body Material Red brass.

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

V5011P2002 Honeywell Valve

• Red brass body with NPT-threaded end connections.
• Low seat leakage rate (≤0.05 percent of Cv).
• 50:1 rangeability per VDI/VDE 2173.
• Spring-loaded, self-adjusting packing.
• Accurate positioning to ensure state of the art temperature
control.
• Directly coupled electric and pneumatic actuators
for easy mounting.
• Sizes rang from 1-1/4 in. to 2 in.
• Valve designs provide equal percentage flow characteristic
for water and linear flow characteristic for steam.
• Stainless steel stem and metal-to metal seats.
• Repack and rebuild kits for field servicing.
